Q48

12" Subwoofer, 4-Way FreeStanding Bi-Amp Subwoofer

This product has been discontinued
Technology header click
Tags:

The new Q48 Q Series loudspeaker redefines the in-room listening experience.  Primarily developed for hi-end two channel listening, this system blend old classic design methodology with modern technology.  For example, the Q48 has a built in high power 12” subwoofer with bi-amp connections.  This allow users to select the amplifier they prefer for the critical full range section, whether tube or solid state, and still use an independent high power amplifier, again a user’s choice, for the subwoofer sections.

In stereo, two subwoofers (1 per side) allow for full left/right stereo configurations rather than mono bass.  The James M1000 1000W subwoofer amplifier makes a great companion to these systems, requiring one per system for full affect.

The systems feature Beryllium quad tweeter arrays for very high output, low distortion and unmatched reliability – and a very silk smooth top end.  Midranges and woofers all feature aluminum cones with Santoprene™ rubber surrounds for least colored sound.  The subwoofer also features an aluminum cone and rubber surround with a large 3” voice coil for 1000W+ of power handling.

If you prefer beauty over stealth, a pair of systems with built in subs can be the beginning of a great home theater system.  Add a custom matching center channel and surrounds of your choice to complete the system!

The really great thing is that all Q Series speakers are custom finished, so you specify the color you require at the time of order.  Red, to blue to black, James is waiting to paint you a dream pair of these floor standing beauties.

Specifications
Frequency Response

20Hz-40kHz ±3dB

Nominal Impedance

Sub 4 ohms, Mid/High 4 ohms

Sensitivity

97dB @ 2.83V/1m

Crossover

4-Way

Recommended Power Range

50 - 1000W

Woofer

(1) 12” (305mm) Aluminum

Mid-bass

(2) 8” (203mm) Aluminum

Mid

(2) 5.25” (133mm) Neodymium

Tweeter

(4) 1” (25mm) Beryllium

Enclosure

MDF (Medium-Density Fibreboard)

Finishes

Custom Color/Finish

Width

19.25 in (488.95 mm)

Depth

21.37 in (542.80 mm)

Height

48 in (1219.20 mm)

Product Documents

Related Documents

Click photo for download image options

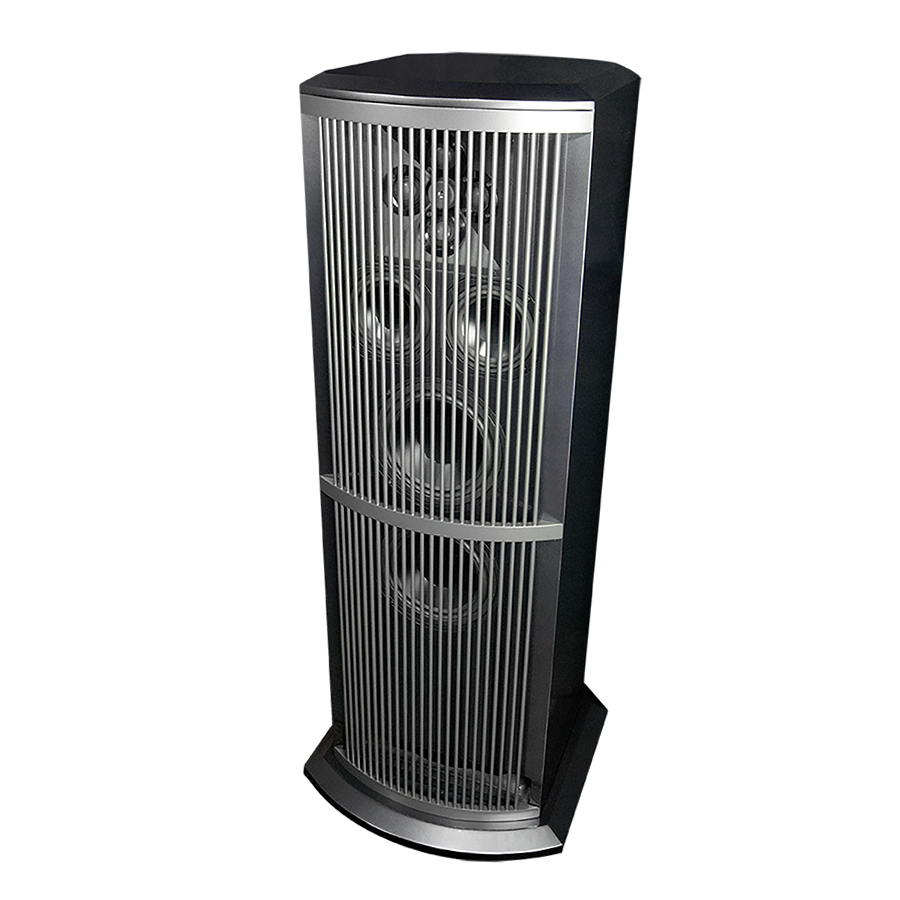

Q48 iso

Q48 - Available downloads

Title: Q48

Q48 iso
Size Resolution (Right-click: Save link as...)
249.56 KB 900x900 Q48_ISO.jpg
20.84 MB 2400x2400 Q48_ISO.tif
Orange q48 web iso

Q48 - Available downloads

Title: Q48 in Lamborghini orange

Orange q48 web iso
Size Resolution (Right-click: Save link as...)
76.93 KB 900x900 Orange_Q48_Web_ISO.jpg
44.98 KB 900x900 q48-orange.jpg
Blue q48 web

Q48 - Available downloads

Title: Q48 Blue Finish

Blue q48 web
Size Resolution (Right-click: Save link as...)
72.40 KB 900x900 Blue_Q48_Web.jpg

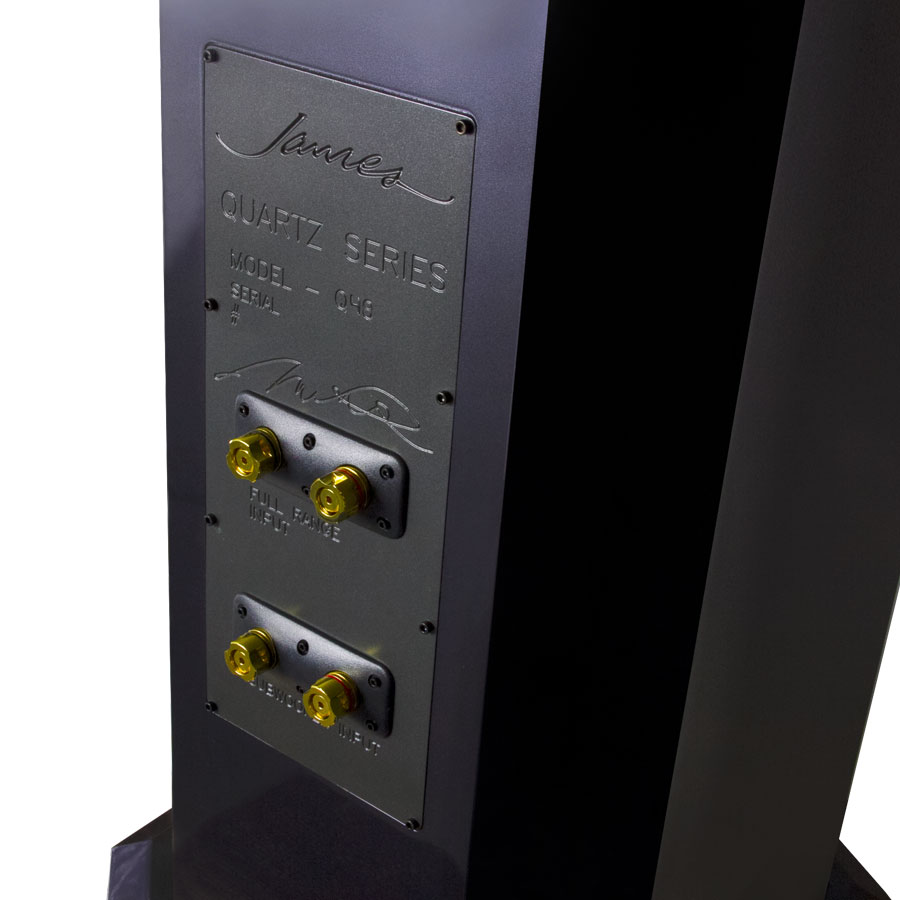

Q48 rear terminals web

Q48 - Available downloads

Title: Q48 Rear Terminals - Binding Posts/Female Banana Plugs

Q48 rear terminals web
Size Resolution (Right-click: Save link as...)
66.26 KB 900x900 Q48_Rear_Terminals_Web.jpg
Q48 grille zoom web

Q48 - Available downloads

Title: Q48 Grille Zoom

Q48 grille zoom web
Size Resolution (Right-click: Save link as...)
113.45 KB 900x900 Q48_Grille_Zoom_Web.jpg
