MQS85

8", 4-Way Full-Range, Surround On-Wall

Technology header click
Tags:

The Maverick series by James Loudspeaker was inspired by the legendary “Maverick” surf of Northern California—awesome, powerful, and exciting! This large format bi-pole surround speaker was specifically developed for high output home theater systems where depth is not an issue. The maverick series by James provides ultra-wide bandwidth, very high sound pressure levels, and extremely low distortion, resulting in a stunning cinema experience.

The MQS85 is a wide dispersion, wide bandwidth, on-wall surround in the tradition of commercial cinema design. Using the customary bi-pole design to deliver coverage to any area regardless of location, this surround module is built to deliver the ultimate cinema experience. Each of these models provides high SPL and crystal clear sound all the way down to 45Hz, and up to frequencies above 24kHz. When used in the proper context, this bi-pole surround system represents the cutting edge of cinema technology and delivers the high impact audio you expect from a high performance theater system.

Specifications
Frequency Response

45Hz-24kHz +/-3dB

Nominal Impedance

4 ohms

Sensitivity

92dB 2.83V/1m

Recommended Power Range

75 - 300W

Woofer

(1) 8" (203mm) Aluminum

Mid

(2) 5.25" (133mm) Aluminum

Tweeter

(8) 0.75" (19mm) Aluminum

Enclosure

MDF (Medium-Density Fibreboard)

Finishes

Studio Black

Width

14 in (355.60 mm)

Depth

6 in (152.40 mm)

Height

26 in (660.40 mm)

Click photo for download image options

Mqs85 ft webrgb

MQS85 - Available downloads

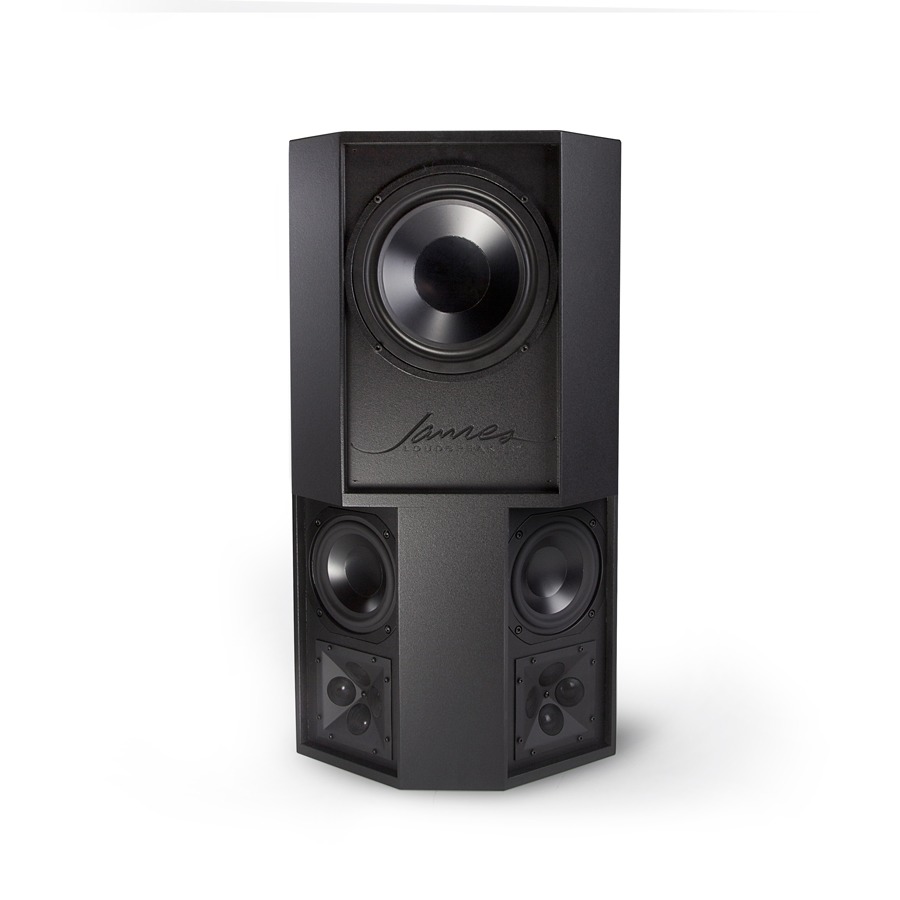

Title: MQS85 front

Mqs85 ft webrgb
Size Resolution (Right-click: Save link as...)
63.68 KB 900x900 MQS85_ft_WEBrgb.jpg
Mqs85 grille

MQS85 - Available downloads

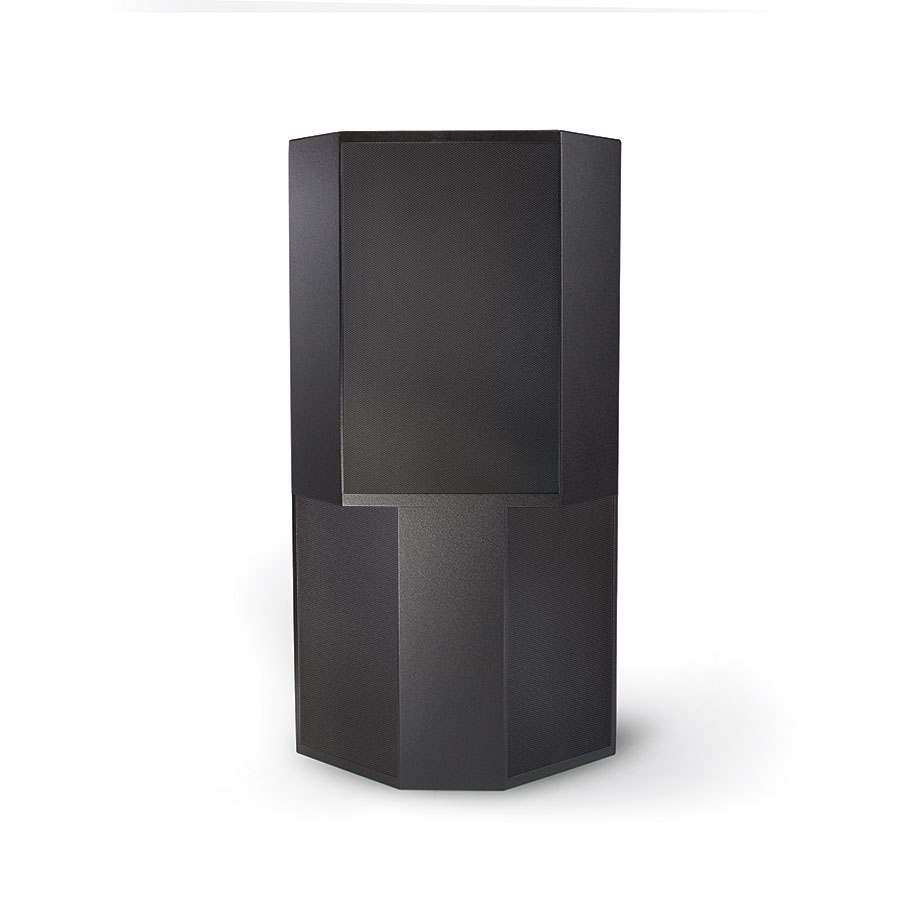

Title: MQS85 Front With Grille

Mqs85 grille
Size Resolution (Right-click: Save link as...)
51.10 KB 900x900 MQS85_Grille.jpg
Mqs85 back

MQS85 - Available downloads

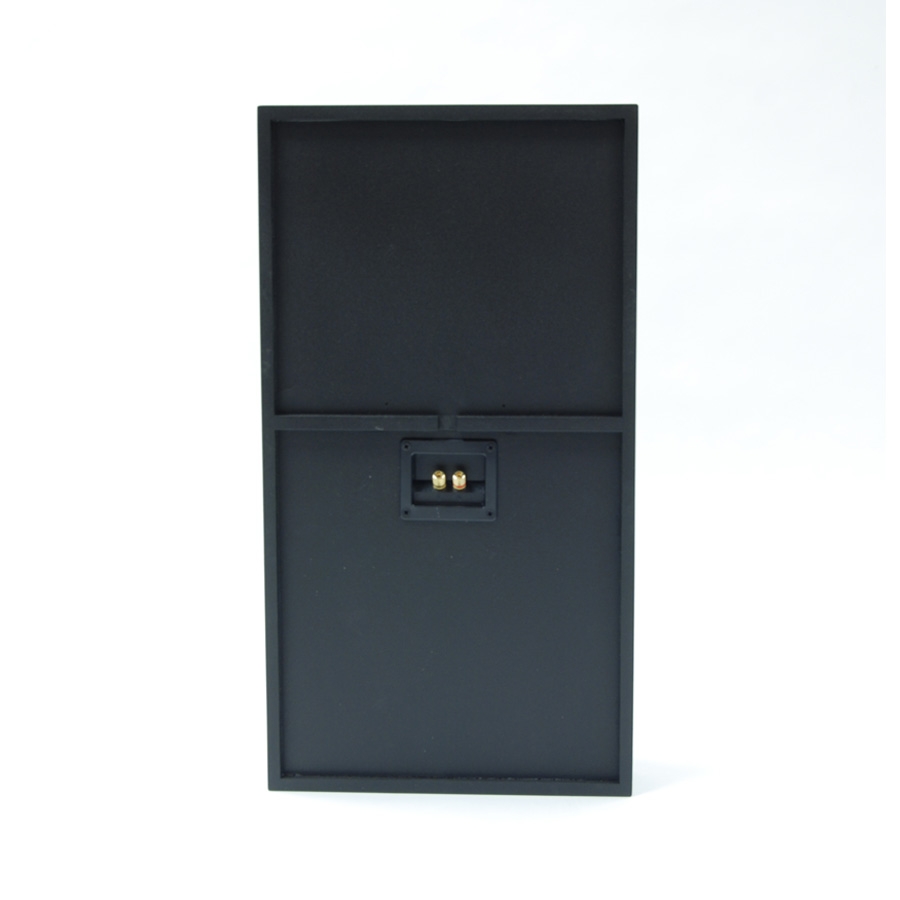

Title: MQS85 back

Mqs85 back
Size Resolution (Right-click: Save link as...)
107.87 KB 900x900 MQS85-back.jpg
Mqs85 side

MQS85 - Available downloads

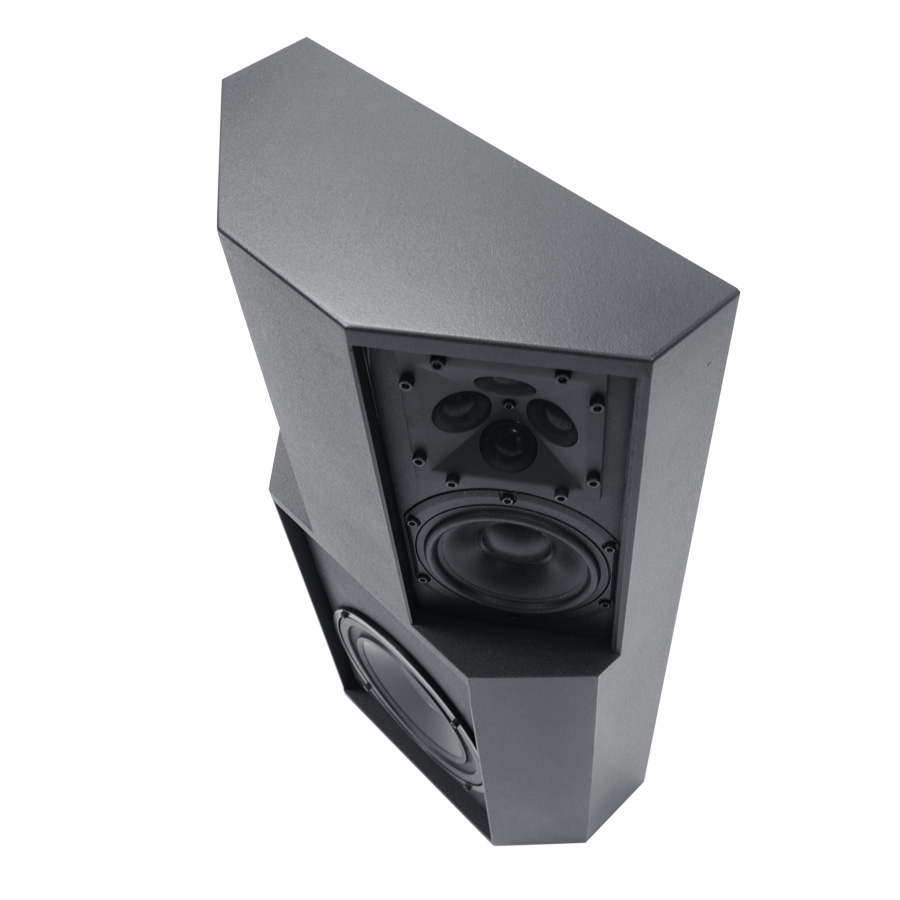

Title: MQS85 side

Mqs85 side
Size Resolution (Right-click: Save link as...)
123.81 KB 900x900 MQS85-side.jpg
Mqs85 detail

MQS85 - Available downloads

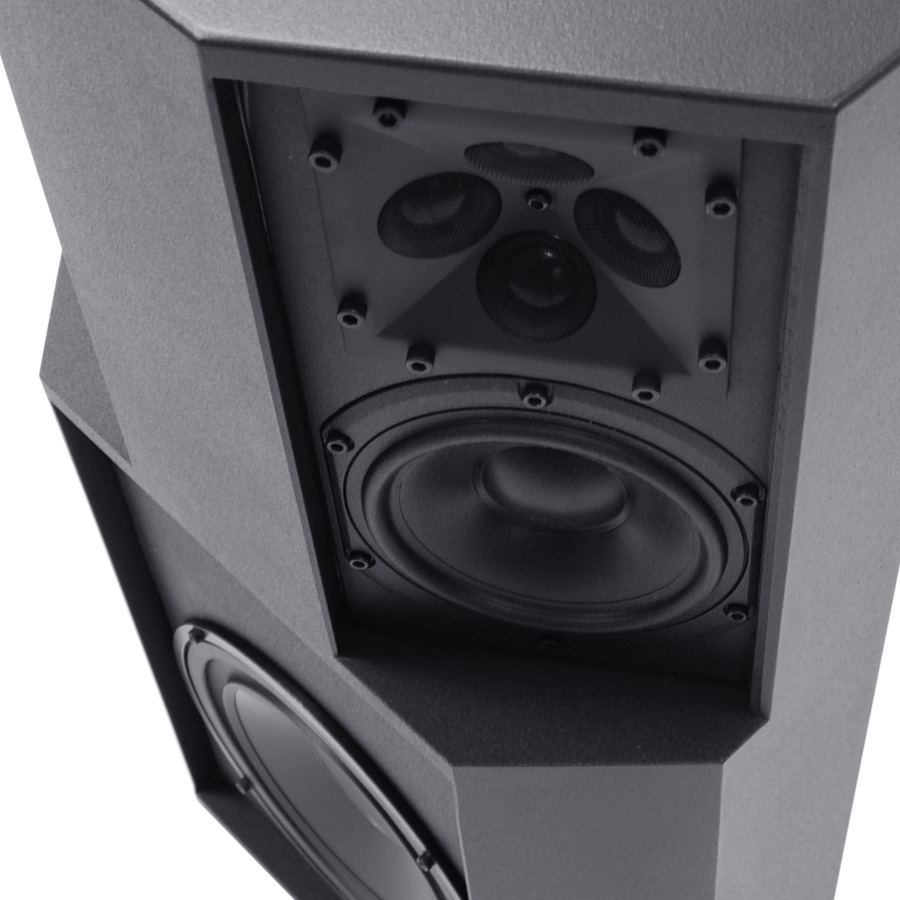

Title: MQS85 zoom

Mqs85 detail
Size Resolution (Right-click: Save link as...)
252.87 KB 900x900 MQS85-detail.jpg
Mqs85 white front

MQS85 - Available downloads

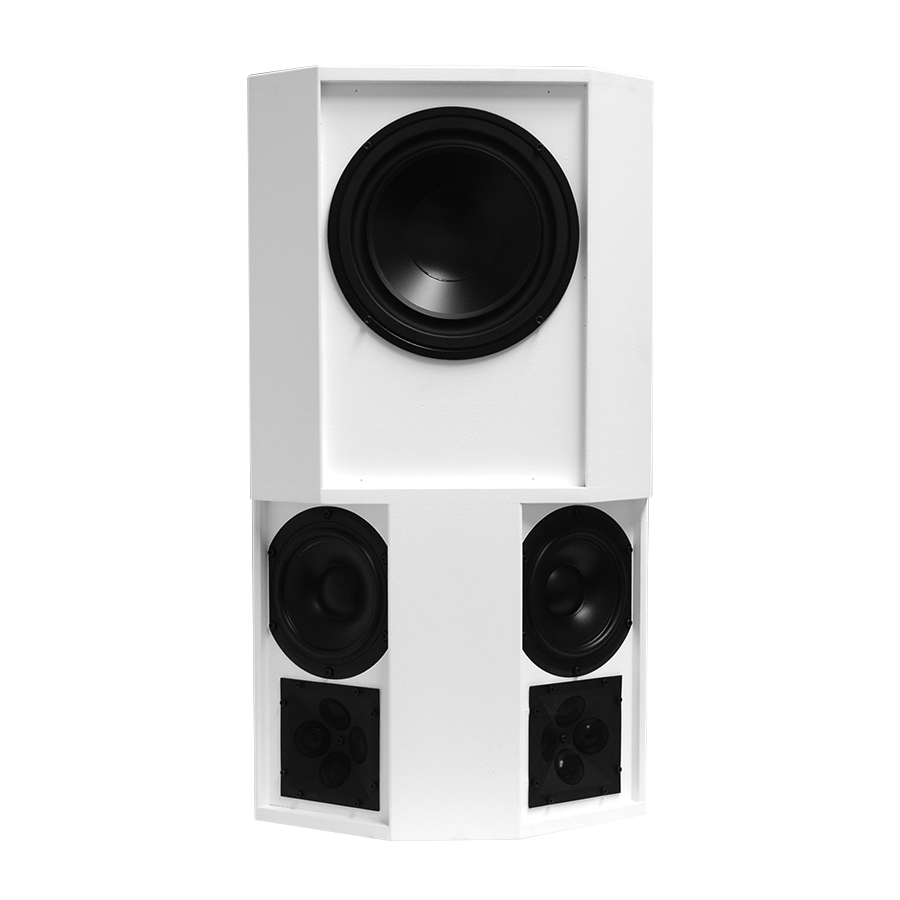

Title: MQS85 white front

Mqs85 white front
Size Resolution (Right-click: Save link as...)
138.93 KB 900x900 MQS85-white-front.jpg
Mqs85 white angle

MQS85 - Available downloads

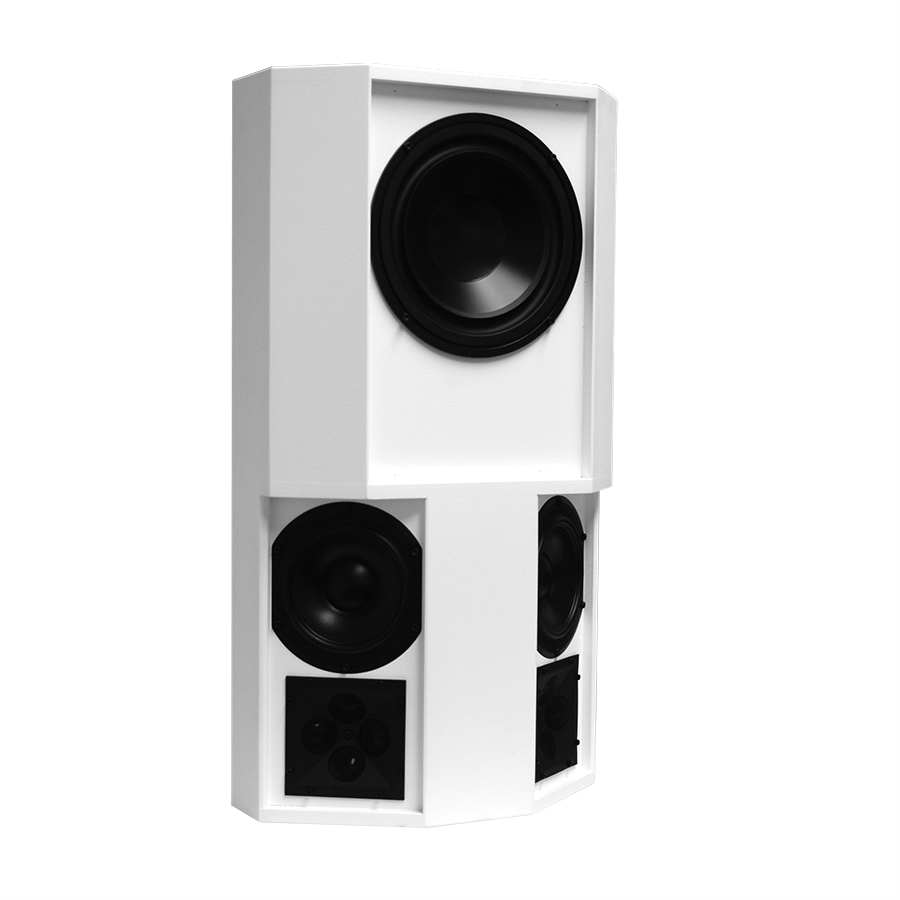

Title: MQS85 white angle

Mqs85 white angle
Size Resolution (Right-click: Save link as...)
125.00 KB 900x900 MQS85-white-angle.jpg
Mav theater 1 web

MQS85 - Available downloads

Title: James Mavericks Theater

Mav theater 1 web
Size Resolution (Right-click: Save link as...)
116.23 KB 900x900 MAV_theater_1_web.jpg
