SPL5QT-LCR
5.25" Quadratech Soundbar, LCR, 3.5" Depth
Tags:
The SPL5QT-LCR soundbar delivers impressive output and wide frequency response. James has taken the new Quadratech tweeter and Cymatic Diffuser from the VXQ Series and applied it to the SPL Series for exceptional detail and dispersion. When combined with James’ high output 5.25” (133mm) woofers, the SPL5QT-LCR has a remarkable 89dB sensitivity with bass down below 65Hz, delivering high efficiency, low distortion, and crisp clear audiophile sound. Designed as a left, right, and center channel, the SPL5QT-LCR is perfect for any 3 channel system application. The cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a custom fit and colored aluminum perforated grille, this soundbar mounts directly to any TV. James custom fits each bar to fit your TV perfectly to seamlessly integrate this speaker into any entertainment system, delivering a subdued visual effect, designed to be as unobtrusive as possible. Also available for wall mounting or configurable for other custom applications, this soundbar combines high quality audio with elegant design for the perfect home entertainment solution. Custom brackets for TV mounting are available and can be purchased separately. For wall mounting, optional Z-brackets or U-brackets can be purchased separately. Blind through holes are incorporated into each bar for wall mounting.
For outdoor/marine applications, order the SPL5QT-LCR-M.
65Hz-24kHz +/-3dB
8 ohms
89dB 2.83V/1m
25 - 150W
(4-6) 5.25" (127mm) Aluminum
Quadratech 0.75” (19mm) four titanium dome Tweeter, Ferrofluid-cooled, acoustic back chamber
Aircraft Marine Grade Aluminum; NOTE: SPL-QT models feature panels on the front baffle that provide access during product manufacturing for improved build consistency. Not field-serviceable.
Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver
Custom / (Absolute Minimum Width: 41.25")
3.5 in (88.90 mm)
5.75 in (146.05 mm)
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
-
Installation Guides and Info
-
Manuals
Related Documents
-
Brochures
-
Software
Click photo for download image options
SPL5QT-LCR - Available downloads

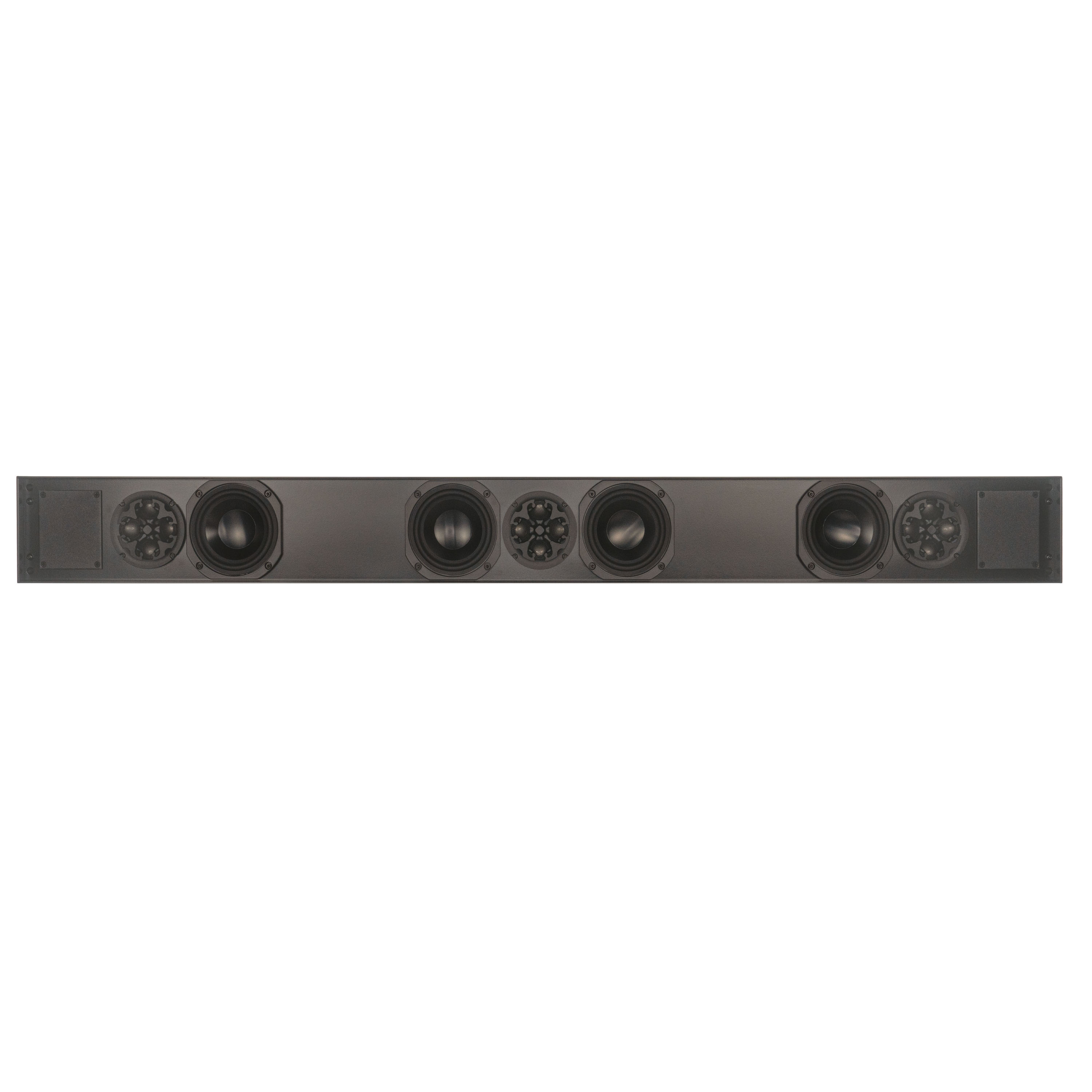

Title: SPL5QT-LCR Front
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 380.52 KB | 3000x3000 | SPLQT_0000s_0001_Layer_7.jpg |
SPL5QT-LCR - Available downloads

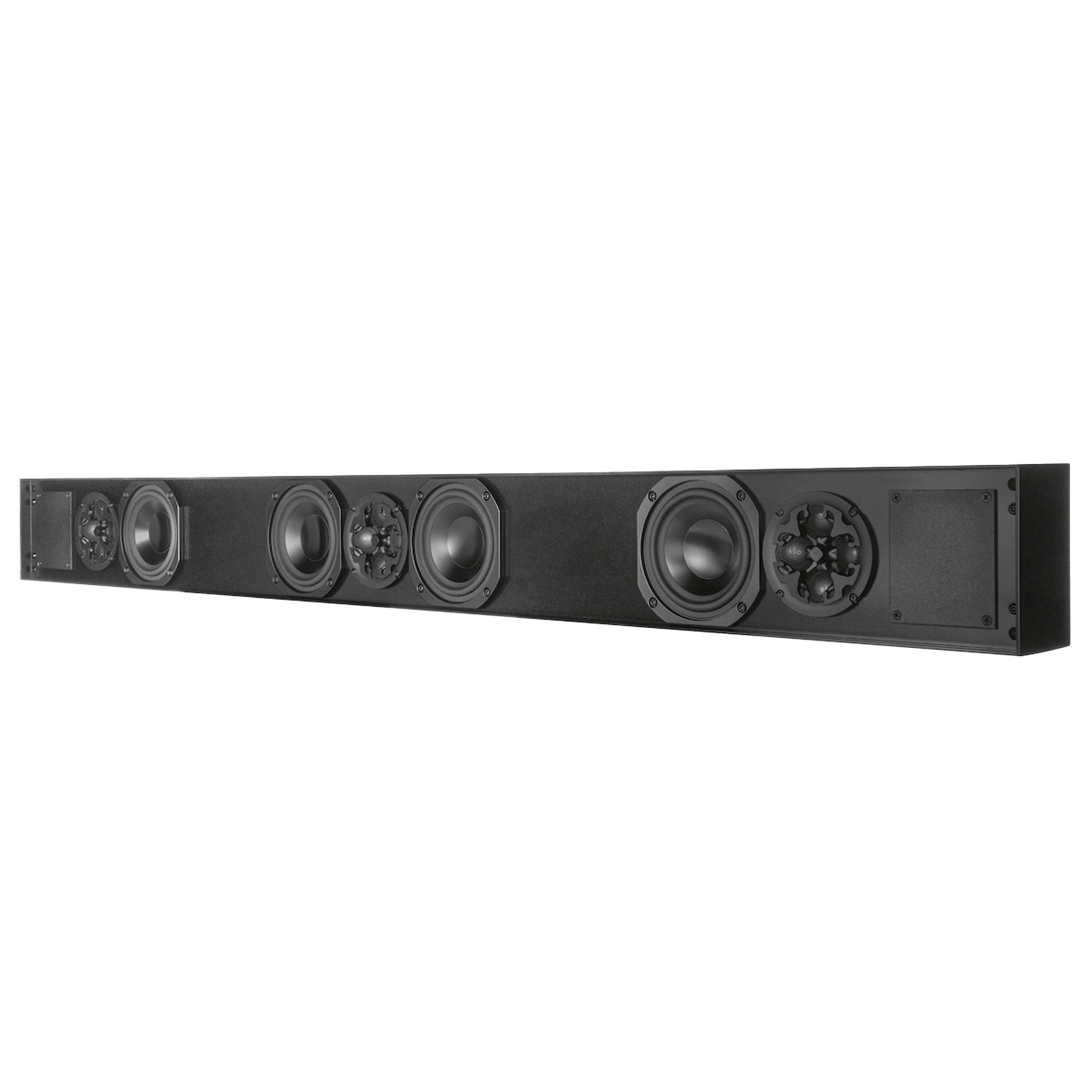

Title: SPL5QT-LCR Front 45
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 375.73 KB | 3000x3000 | SPLQT_0000s_0000_Layer_8.jpg |
SPL5QT-LCR - Available downloads
Title: SPL5QLCR ground
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 22.00 KB | 900x900 | SPL5Q-LCR-isometric-with-grille.jpg |
SPL5QT-LCR - Available downloads
Title: SPL5Q-LCR back
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 25.27 KB | 900x900 | SPL5Q-LCR-back.jpg |
SPL5QT-LCR - Available downloads
Title: SPL3 series colors
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 88.41 KB | 900x900 | Colors_Web.jpg |
