SLT3-LCR
3.5" Woofer, LCR SlotBar With a 4.97" Depth
Tags:
THIS PRODUCT HAS BEEN CUSTOM DESIGNED FOR A SPECIFIC CUSTOMER AND IS ONLY SHOWN FOR REFERENCE. WE ARE NOT ABLE TO ACCEPT ORDERS USING THE MODEL NUMBER SHOWN. PLEASE CONTACT JAMES TO DISCUSS YOUR APPLICATION AND WE WILL DESIGN A PRODUCT JUST FOR YOU!
The SLT, or "Slot" series provides a special solution and performance for your home entertainment needs and it is a custom design. Like all James sound bars, each bar comes completely customized for your TV. Not only do we guarantee that your bar will perfectly match the size of your television, we make sure that your bar comes in the color and format that you want. Whether you’re looking for just a center channel, a stereo bar, or the complete package of left, center and right, we have the bar for you. We even make bars that mount to the sides of the TV for applications where mounting to the bottom is impossible, using the James Loudspeaker centergy technology to integrate the center channel into both bars in a dual monaural design, and allowing maximum versatility in integrating sound into your entertainment system.
80Hz-20kHz +/-3dB
4 ohms
87dB 2.83V/1m
50 - 150W
(4-6) 3.5" (89mm) High Excursion
(1-3) 2" (50mm) Aluminum
(1-3) 0.75" (19mm) Aluminum
Aircraft Grade Aluminum
Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver
Custom / (Absolute Minimum Width: 54" or 1372mm)
4.97 in (126.24 mm)
3.15 in (80.01 mm)
Product Documents
-
Datasheets/Cutsheets
-
Manuals
Related Documents
-
Brochures
Click photo for download image options
SLT3-LCR - Available downloads
Title: SLT3LCR ISO View
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 24.43 KB | 900x900 | SLT3LCR-ISO-View.jpg |
SLT3-LCR - Available downloads
Title: SLT3LCR Front View
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 18.74 KB | 900x900 | SLT3LCR-Front-View.jpg |
SLT3-LCR - Available downloads

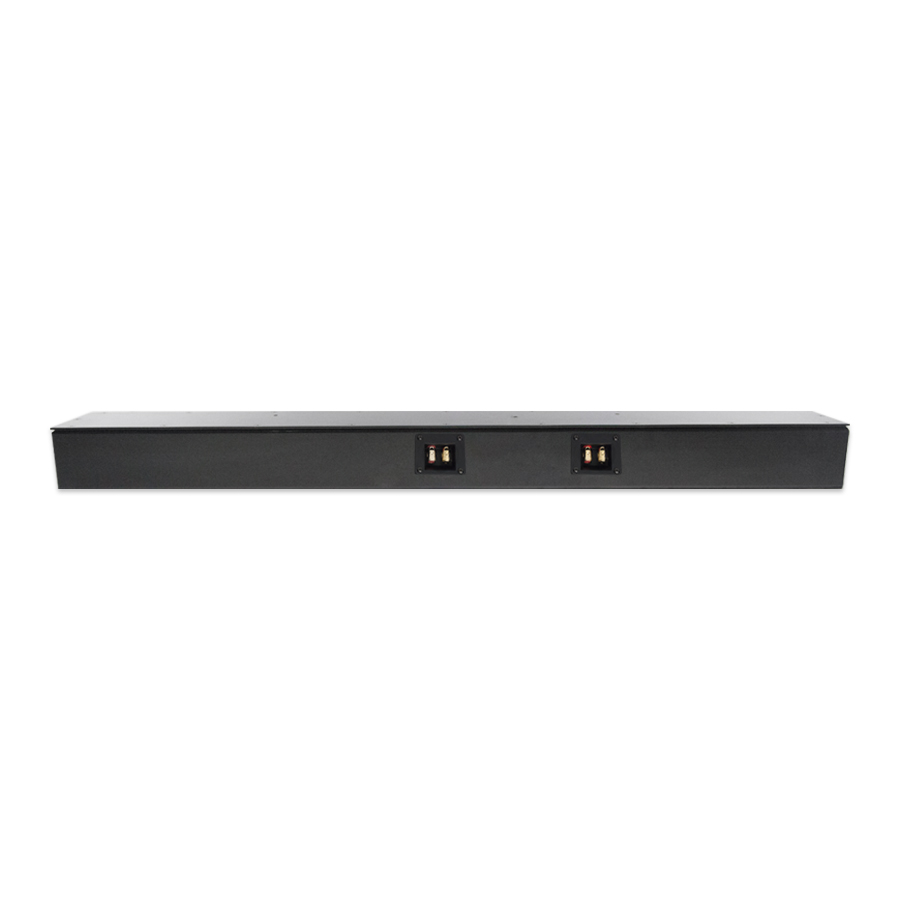

Title: SLT3LCR Rear
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 96.32 KB | 900x900 | SLT3C_Rear_Web.jpg |
SLT3-LCR - Available downloads

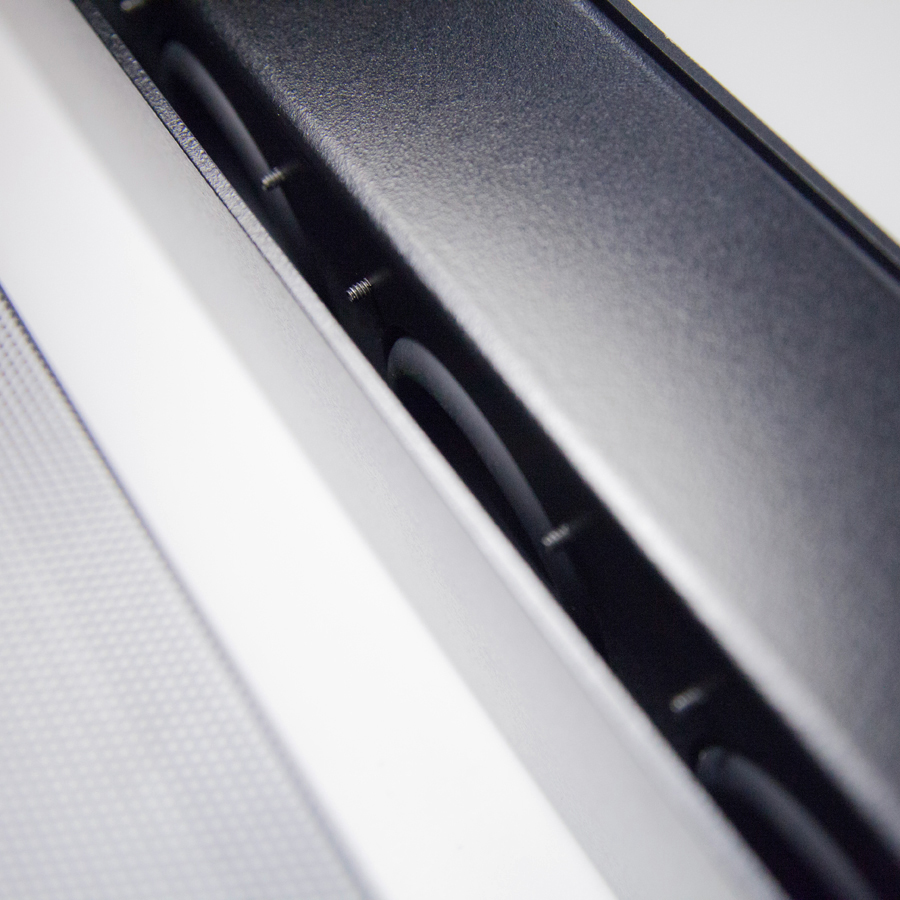

Title: SLT3LCR Rear
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 457.36 KB | 900x900 | SLT3_Slot_Zoom.jpg |
