SPL8QT-LCR
8" Quadratech Soundbar, LCR, 4" Depth, High-Output
Tags:
The SPL8QT-LCR is a James premier full range, high output LCR Soundbar for large format video displays. Representing the ultimate home entertainment sound system, this Soundbar offers a powerful punch in an elegantly designed package. The SPL8QT soundbar borrows the new Quadratech tweeter and Cymatic Diffuser from the VXQ Series and applied it to the SPL Series for wide dispersion, high power handling, and low distortion, delivering audiophile-quality where it counts. Combined with high output 8” (203 mm) aluminum cone woofers, the SPL8QT-LCR has an impressive 96dB sensitivity with bass down to below 60Hz. This Soundbar comes customed sized to each TV, providing seamless integration to any environment. This combination of elegant design and high-quality sound makes the SPL8QT-LCR the perfect no-compromise solution for designers and audiophiles alike.
The cabinet design features all aircraft-grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a custom fit and colored stainless steel perforated grille, this Soundbar mounts directly to any TV using our custom PL brackets. Also available for wall mounting or configurable for other custom applications, this ultimate Soundbar is perfect for any home entertainment solution.
Custom TV brackets, Z-brackets, and U-brackets are purchased separately. Blind through holes are incorporated into each bar for wall mounting. Also, the universal bracket for the SPL6 series Soundbar can be used with the SPL8Q series because both Soundbars are based off the same piece of extruded aluminum.
For outdoor/marine applications, order the SPL8QT-LCR-M.
4-8 ohms (woofer qty dependent)
96 dB/2.83V
50W - 200W
(4-6) 8" aluminum
Quadratech 1” (25mm) four titanium dome tweeter, Ferrofluid-cooled, acoustic back chamber
5052 Aircraft/marine aluminum; NOTE: SPL-QT models feature panels on the front baffle that provide access during product manufacturing for improved build consistency. Not field-serviceable.
6 standard colors
Custom / (Absolute Minimum Width: 51.5")
4 in (101.60 mm)
8.125 in (206.38 mm)
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
-
Installation Guides and Info
-
Manuals
Related Documents
-
Brochures
-
Software
Click photo for download image options
SPL8QT-LCR - Available downloads

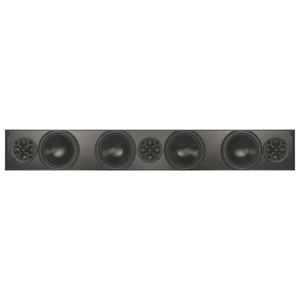

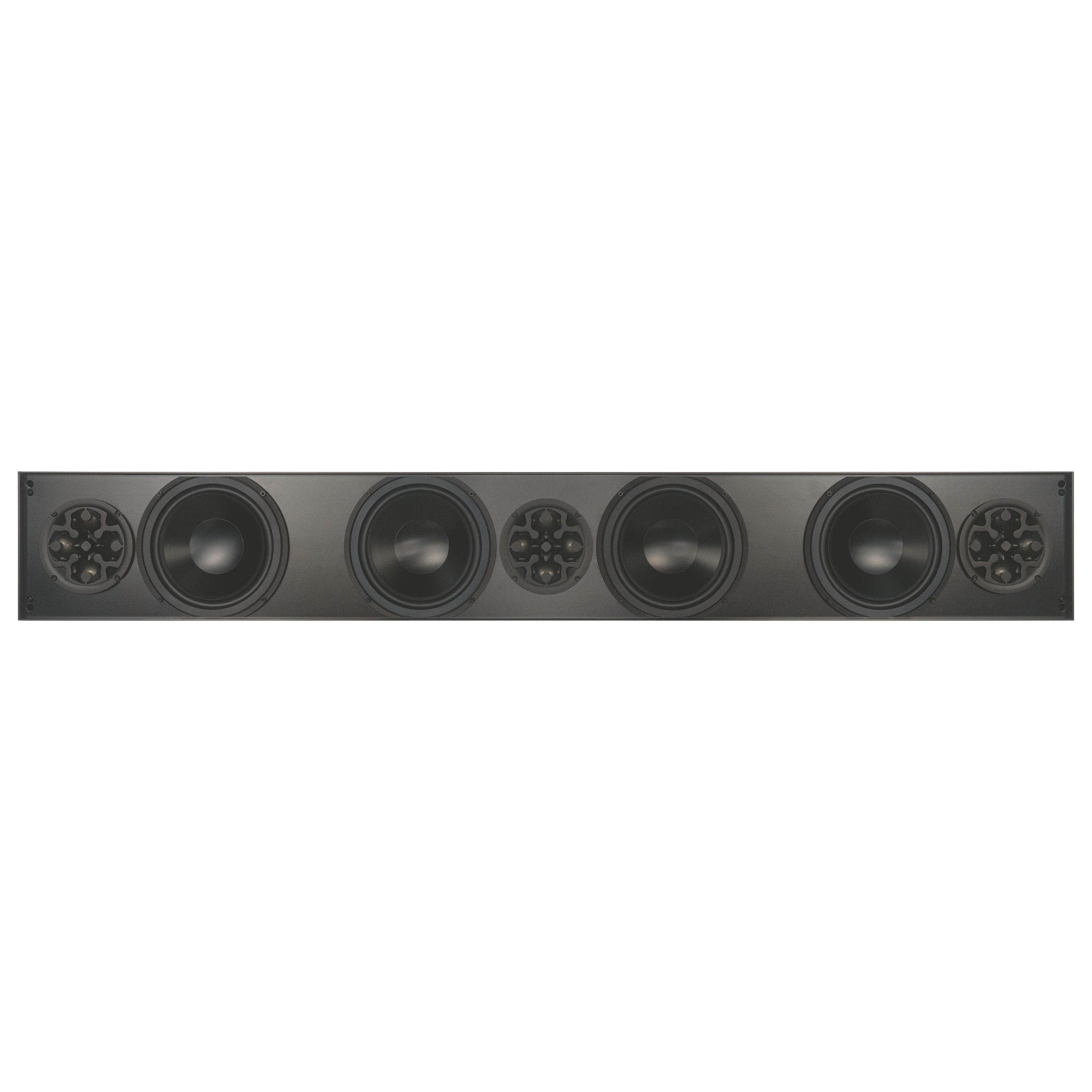

Title: SPL8QT-LCR Front
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 393.48 KB | 3000x3000 | SPL8QT_0000s_0004_01_SPL8Q_LCR.jpg |
SPL8QT-LCR - Available downloads
Title: SPL8QT-LCR Front 45
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 538.60 KB | 3000x3000 | SPL8QT_0000s_0002_03_SPL8Q_LCR.jpg |
SPL8QT-LCR - Available downloads

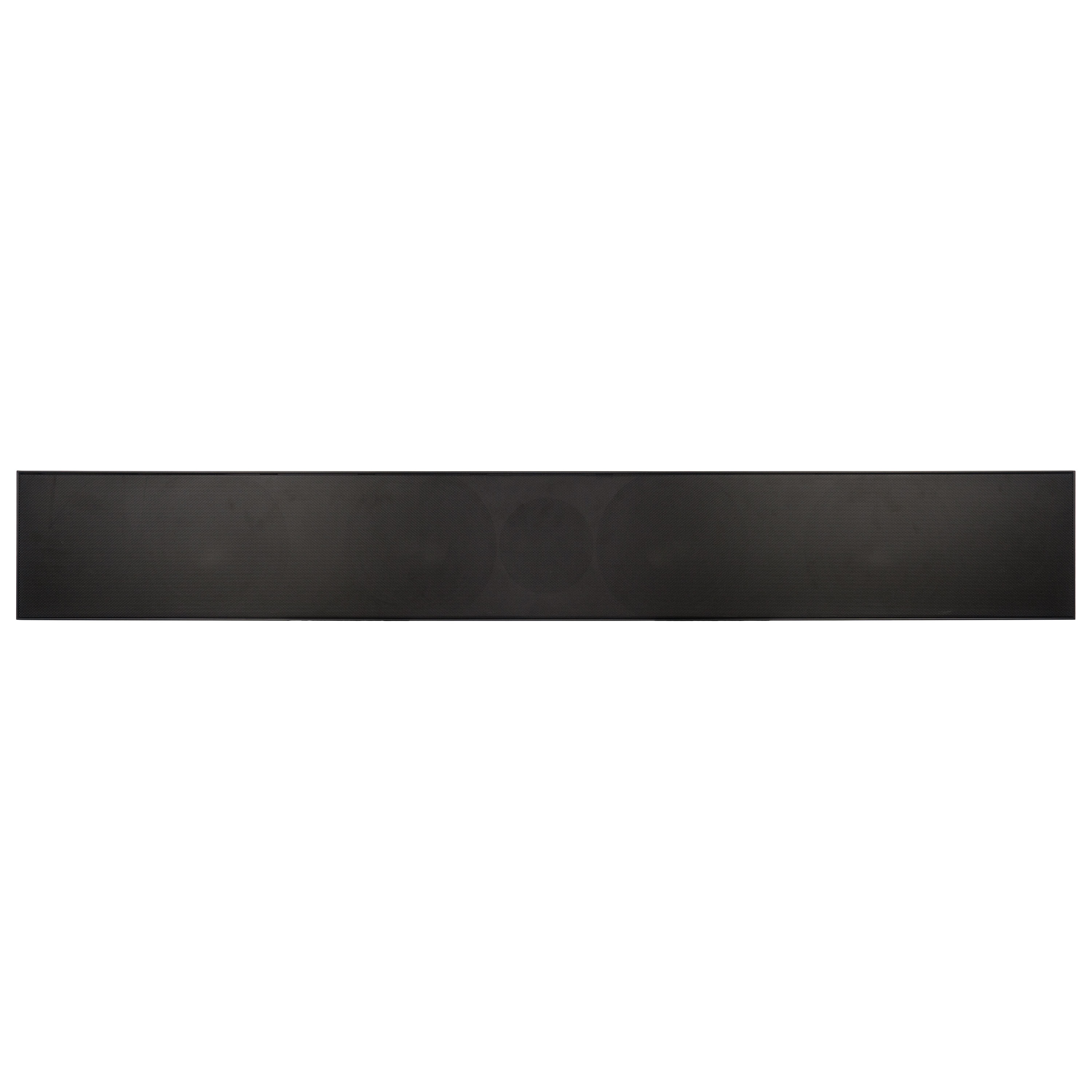

Title: SPL8QT-LCR Front Grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 655.64 KB | 3000x3000 | SPL8QT_0000s_0003_02_SPL8Q_LCR.jpg |
SPL8QT-LCR - Available downloads

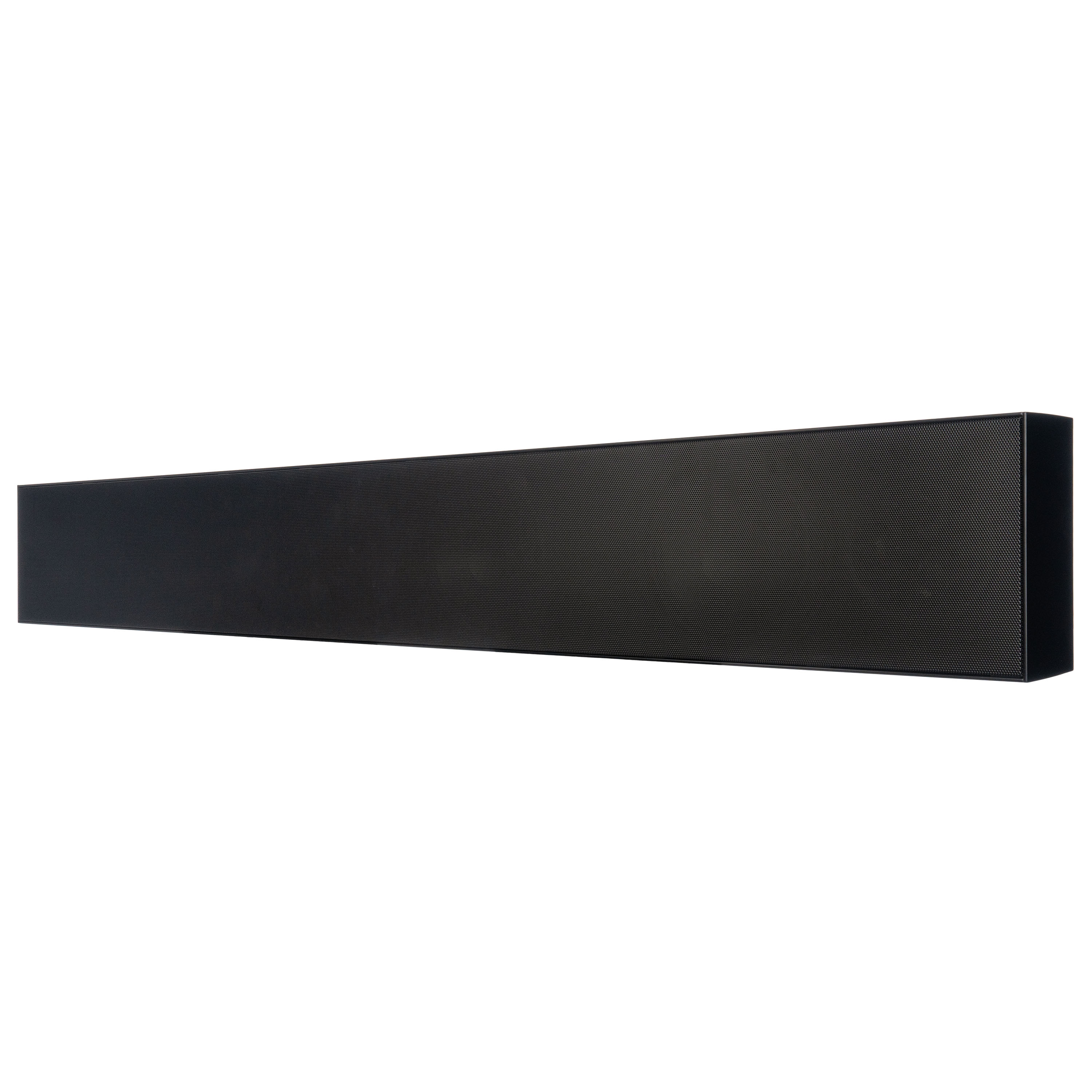

Title: SPL8QT-LCR Front 45 Grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 728.57 KB | 3000x3000 | SPL8QT_0000s_0001_04_SPL8Q_LCR.jpg |
SPL8QT-LCR - Available downloads

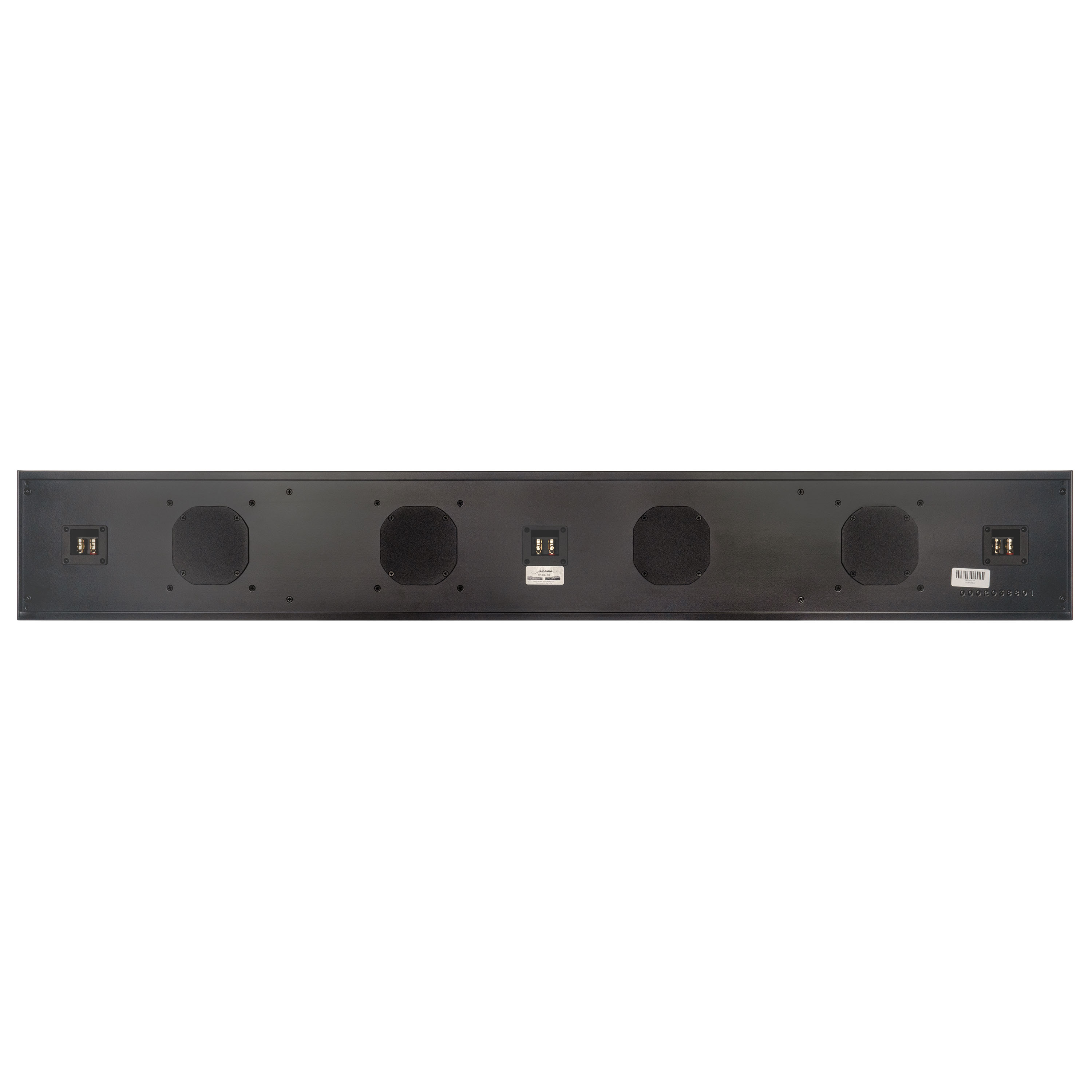

Title: SPL8QT-LCR Back
