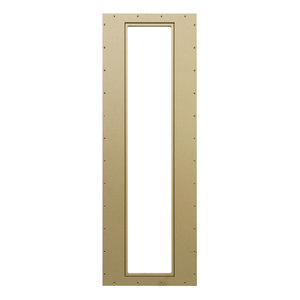

The QX1020-PBF flush mount board installs directly to the studs using MDF material, the same thickness as the sheetrock. Then sheetrock can be installed up to the edge of the MDF and taping and mudding can be performed as if the MDF board were part of sheetrock. The mudding is done up to a lip on the board next to the cutout in which the speaker will be installed such that the grille is seamlessly flush with the wall. These installation tools can be made available for any of our integrated speaker models, making the installation and integration process as easy as possible.

Since the speaker grille is recessed, there is a unique PBF for the round (R) and square (S) grille models, be sure to order he correct model.

When ordering flush mount pre-construction boards (PBF models), you must specify the thickness of the sheetrock that you will be using by adding the decimal thickness you require (should match your sheetrock) to the end of the part number.  For example, ½” sheetrock would be ordered as QXC820R-PBF-0.5.
