SPL6QT-LRSUB
6.5" Quadratech Soundbar, 2.1 Format, 4" Depth
Tags:
The James 2.1 Format L/R/SUB soundbars produce left and right-channel audio as well as bass energy from a center-mounted built-in subwoofer. These L/R/SUB 2.1 format soundbars, which can be customized to match nearly any flat-panel display, are ideal for bringing clarity and full-range sound to applications where an external subwoofer is impractical.
The James Loudspeaker L/R/SUB soundbars are ideally suited for boardrooms, conference rooms, lobbies, retail showrooms and nightclubs, as well as residential applications such as bedrooms or other zones where a flat-panel TV is present but surround sound is not required. Currently available in the company’s SPL5QT and SPL6QT Series soundbars, the L/R/SUB versions offer high-output, superb clarity and bass extension below 60Hz from nearly any size form factor. The 2.1 configuration of the L/R/SUB soundbars make them a perfect match to the James Loudspeaker A2.1 three-channel amplifier, which features onboard crossovers and independent controls for easy system calibration.
James soundbars are built from elegant aircraft-grade aluminum for strength, sonic performance and durability when used for outdoor or marine applications. Each soundbar features proprietary aluminum cone woofers and either aluminum or beryllium dome quad tweeters for unsurpassed dispersion and musicality. All L/R/SUB soundbars can be custom fit and painted to match any display or décor. Each bar comes with a matching aluminum perforated grille. L/R/SUB soundbars can be mounted directly to any TV for a seamless presentation or wall-mounted using available brackets. Like all products from James, L/R/SUB 2.1 soundbars are fully customizable to suit any commercial or residential application. For wall mounting, optional Z-brackets or U-brackets can be purchased separately. Blind through holes are incorporated into each bar for wall mounting.
For outdoor/marine applications, order the SPL6QT-LRSUB-M.
40Hz - 24kHz
4/8 ohms (Config. Dependent)
94dB
(2-4) 6.5" Aluminum Woofers
(2-4) 6.5" Aluminum Woofers
Quadratech 0.75” (19mm) four titanium dome Tweeter, Ferrofluid-cooled, acoustic back chamber
Aircraft Grade Aluminum; NOTE: SPL-QT models feature panels on the front baffle that provide access during product manufacturing for improved build consistency. Not field-serviceable.
Custom / (Absolute Minimum Width: 40")
4 in (101.60 mm)
8.125 in (206.38 mm)
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
-
Installation Guides and Info
-
Manuals
Related Documents
-
Brochures
-
Software
Click photo for download image options
SPL6QT-LRSUB - Available downloads

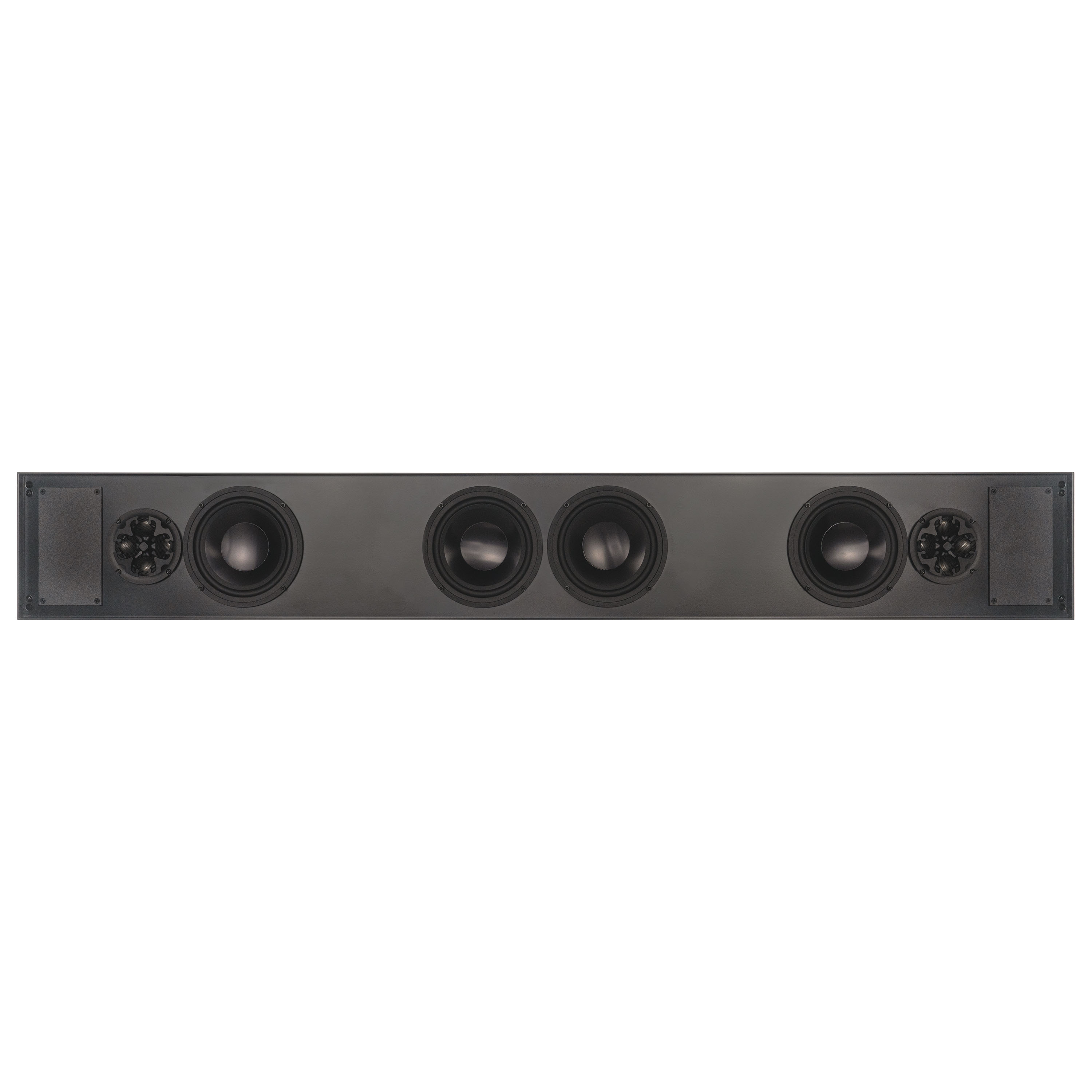

Title: SPL6QT-LRSUB Front
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 397.04 KB | 3000x3000 | SPL6QTTT_0000s_0000_01_SPL6Q_LRSUB.jpg |
SPL6QT-LRSUB - Available downloads
Title: SPL6Q-LRSUB Grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 18.47 KB | 900x900 | SPL6Q-LRSUB-front-with-grille.jpg |
SPL6QT-LRSUB - Available downloads
Title: SPL3 series colors
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 88.41 KB | 900x900 | Colors_Web.jpg |
SPL6QT-LRSUB - Available downloads
Title: SPL6Q-LRSUB Rear
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 19.75 KB | 900x900 | SPL6Q-LRSUB-back.jpg |
