62FX

6.5" 2-Way Flushmount In-wall

Technology header click
Icon marine 80

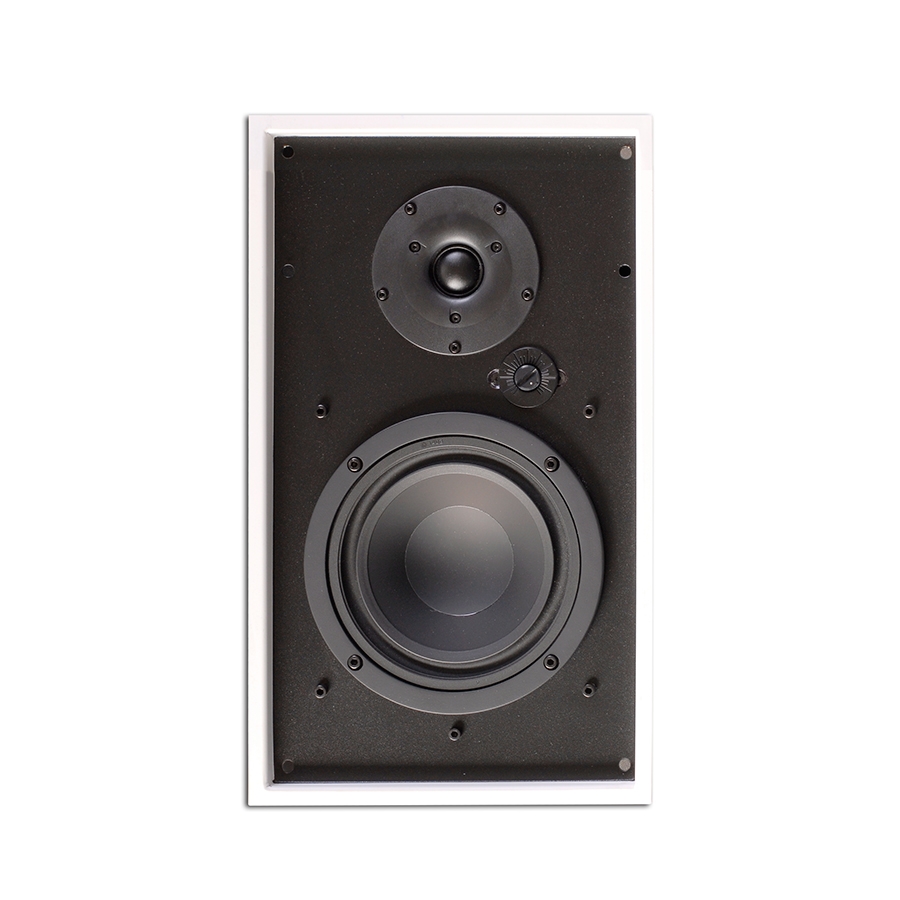

62fx front
Tags:

(1) 6.5" Neodymium Woofer (1) 1" Dome Tweeter AFDC circuit adjusts the speaker to your environment. James' Opus In-Wall speakers are concealed discretely into your environment. Enclosure construction crafted from 5052 aircraft aluminum ensuring minimal internal resonance.

Specifications
Frequency Response

50-20khz +/-3dB

Nominal Impedance

4ohm

Sensitivity

90dB @ 2.83V @ 1 Meter

Crossover

AFDC 12 dB / Octave - Variable

Drivers

(1) 6.5 woofer , (1) 1

Recommended Power Range

50W - 200W

Woofer

(1) 6.5

Tweeter

(1) 1

Enclosure

Aircraft Aluminum

Finishes

white

Cutout

16.425 x 9.125 / 417mm x 232mm

Width

9.77 in (248.16 mm)

Depth

3.5 in (88.90 mm)

Height

17.078 in (433.78 mm)

Grille Height

16.164 in (410.57 mm)

Grille Width

8.856 in (224.94 mm)

Product Documents

Click photo for download image options

62fx front

62FX - Available downloads

Title: 62FX front

62fx front
Size Resolution (Right-click: Save link as...)
207.30 KB 900x900 62fx-front.jpg
