Soundbar mounting bracket for SPL2 models (excludes SPL2-CS Centergy models). Designed to mount SPL2 models to TV displays 50" and larger. Black powder coated aluminum mounting bracket designed to mount James SPL2 soundbars (for all model configurations except for SPL2-CS Centergy models). Includes two mirrored brackets per kit to secure to VESA mounting patterned TV models for a precision fit to bottom of TV bezel with ability to float the bar to match the depth of the TV.

Product Documents

• CAD drawings

  • BRK.SPL2.UN CAD (dwg)

Related Documents

• CAD drawings

  • BRK.SPL2.UN CAD (pdf)
  • BRK.SPL2.UN.40-50 CAD (pdf)
  • BRK.SPL2.UN CAD (dwg)
  • BRK.SPL2.UN-43 CAD (pdf)
  • BRK.SPL2.UN-43 CAD (dwg)

• Datasheets/Cutsheets

  • SPL2 SoundBar Data Sheet

• Installation Guides and Info

  • BRK.SPL3.UN Installation Guide

• Software

  • EQ Presets

Click photo for download image options

BRK.SPL2.UN - Available downloads

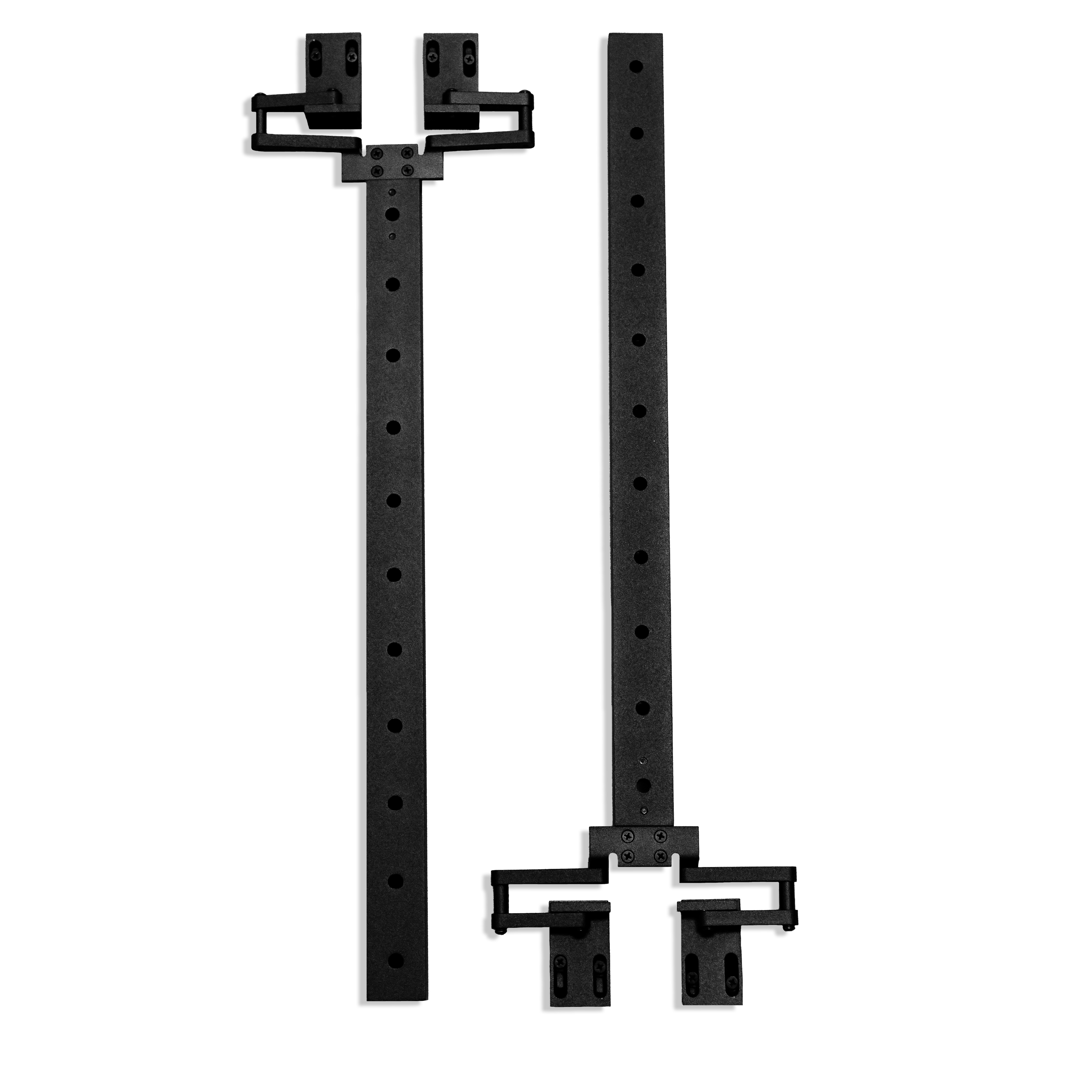

Title: BRK.SPL2.UN Front

Size	Resolution	(Right-click: Save link as...)
780.07 KB	3000x3000	BRK.SPL2.UN_01.jpg
