OW66QBE
6.5", 2-Way, On-Wall Loudspeaker - 4" Depth
Tags:
The OW66QBE features (2) proprietary 6.5" woofers to provide bass down to 75 Hz and (4) 1" Beryllium dome tweeters for silky smooth response up to 40kHz. A James designed network provides a seamless transition between the woofer and tweeter for excellent on and off axis preformance.
Specifications
Frequency Response
75Hz-40kHz +/-3dB
Nominal Impedance
4 ohms
Sensitivity
95dB 2.83V/1m
Crossover
2-Way
Recommended Power Range
25 - 200W
Woofer
(2) 6.5" (165mm) Aluminum
Tweeter
(4) 1" (25mm) Beryllium dome
Enclosure
Aircraft Marine Grade Aluminum
Finishes
Gloss White, Satin Black, or Custom
Width
8.125 in (206.38 mm)
Depth
4 in (101.60 mm)
Height
27 in (685.80 mm)
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
-
Installation Guides and Info
-
Manuals
Related Documents
-
Brochures
-
Software
Click photo for download image options
OW66QBE - Available downloads
Title: OW66QBE front
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 36.45 KB | 900x900 | OW66QBE-isometric-no-grille.jpg |
OW66QBE - Available downloads

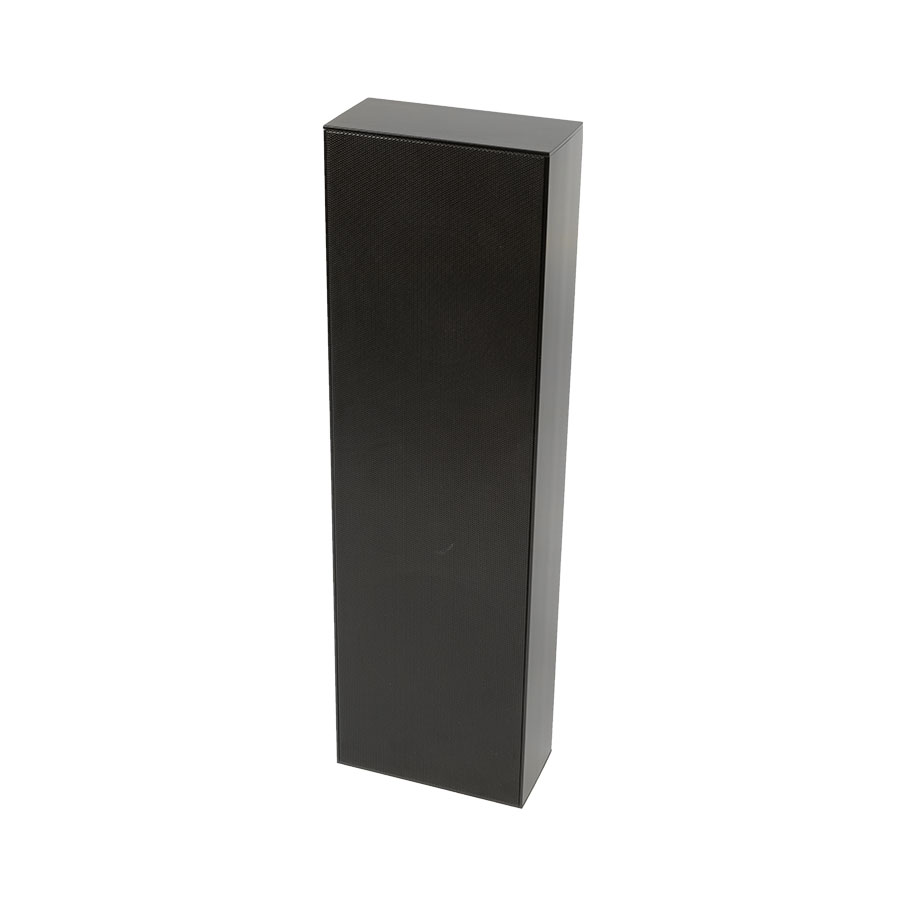

Title: OW66QBE front with grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 30.29 KB | 900x900 | OW66QBE-isometric-with-grille.jpg |
OW66QBE - Available downloads
Title: OW66QBE hero no grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 37.41 KB | 900x900 | OW66QBE-hero-shot-no-grille.jpg |
OW66QBE - Available downloads
Title: OW66QBE hero grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 37.28 KB | 900x900 | OW66QBE-hero-shot-with-grille.jpg |
OW66QBE - Available downloads

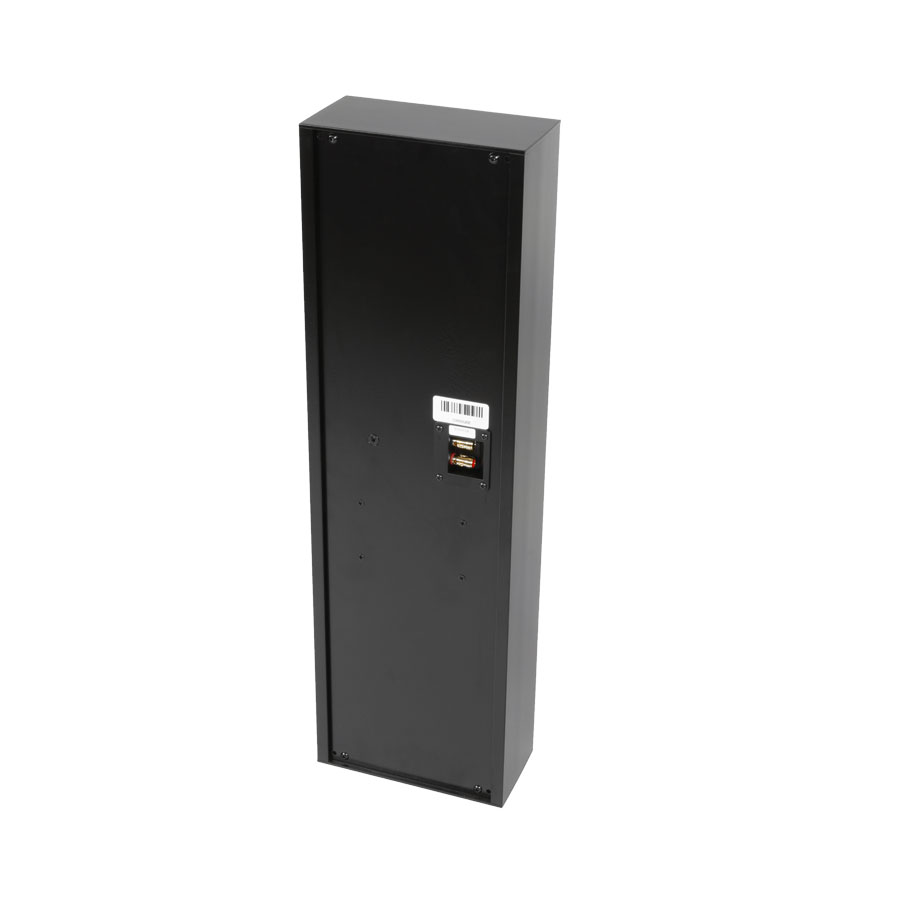

Title: OW66QBE rear
