OW68QBE
6.5", 2-Way, On-Wall Loudspeaker - 4" Depth
Tags:
The OW68QBE features (4) proprietary 6.5" woofers to provide bass down to 70Hz and (4) 1" Beryllium dome tweeters for silky smooth response up to 40kHz. A James designed network provides a seamless transition between the woofer and tweeter for excellent on and off axis preformance.
Specifications
Frequency Response
70Hz-40kHz +/-3dB
Nominal Impedance
4 ohms
Sensitivity
96dB 2.83V/1m
Crossover
3-Way
Recommended Power Range
25 - 200W
Woofer
(4) 6.5" (165mm) Neodymium
Tweeter
(4) 1" (25mm) Beryllium Dome (Quad-array)
Finishes
Gloss White, Satin Black, or Custom
Width
8.125 in (206.38 mm)
Depth
4 in (101.60 mm)
Height
40 in (1016.00 mm)
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
-
Installation Guides and Info
-
Manuals
Related Documents
-
Brochures
-
Software
Click photo for download image options
OW68QBE - Available downloads

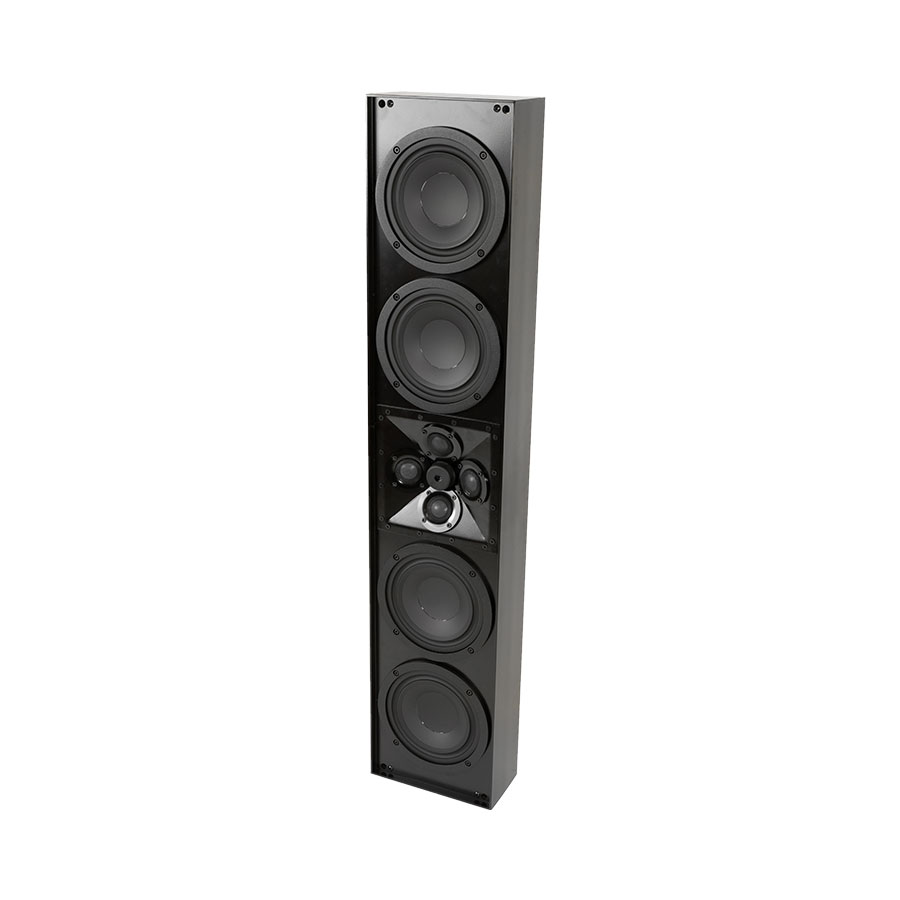

Title: OW68QBE iso no grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 34.65 KB | 900x900 | OW68QBE-isometric-no-grille.jpg |
OW68QBE - Available downloads

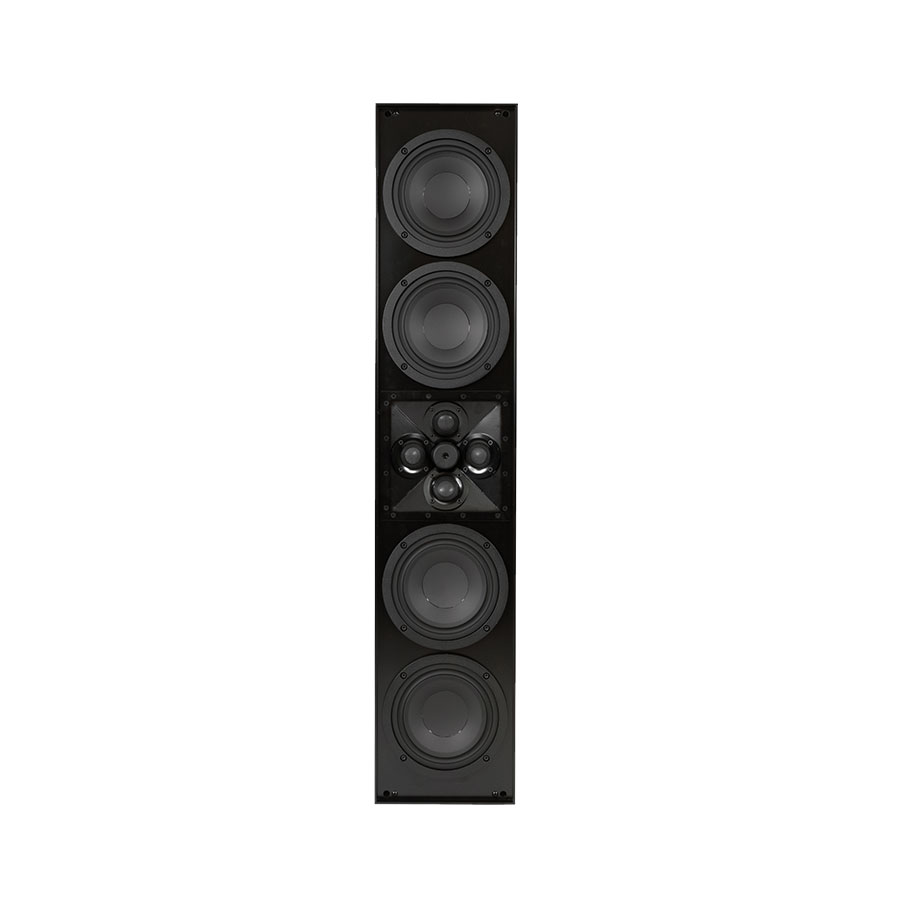

Title: OW68QBE front
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 31.17 KB | 900x900 | OW68QBE-front-no-grille.jpg |
OW68QBE - Available downloads
Title: OW68QBE Front with grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 21.31 KB | 900x900 | OW68QBE-front-with-grille.jpg |
OW68QBE - Available downloads

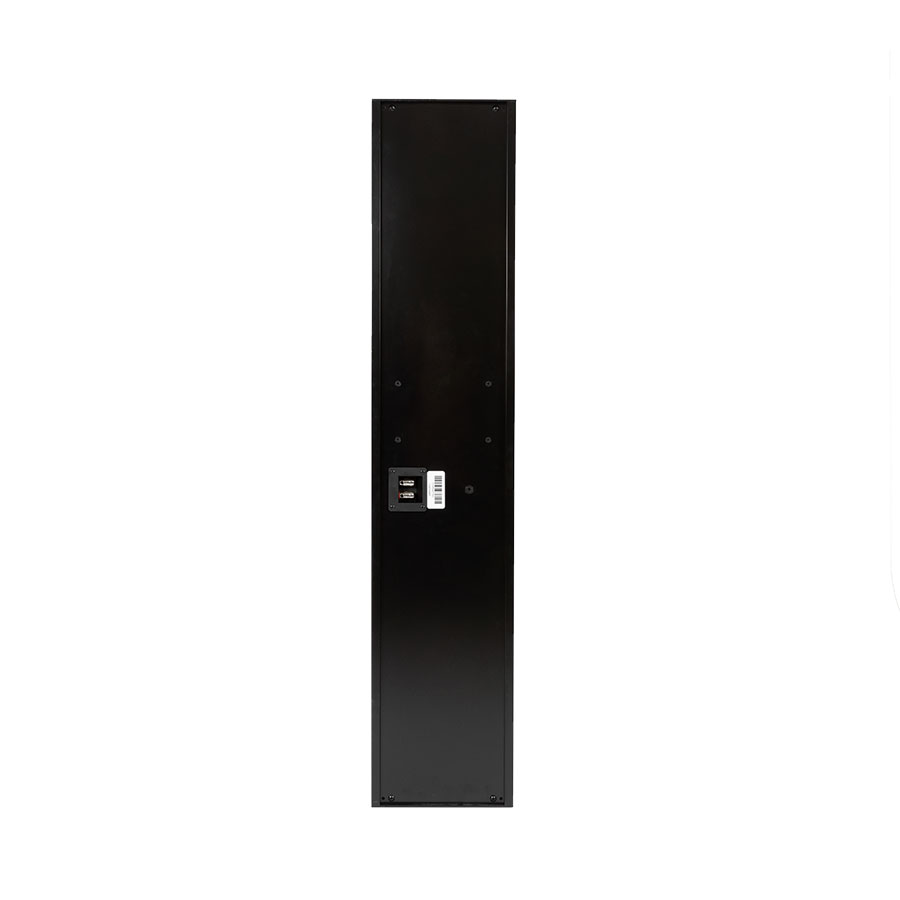

Title: OW68QBE rear
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 19.40 KB | 900x900 | OW68QBE-back.jpg |
OW68QBE - Available downloads
Title: OW68QBE iso with grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 26.09 KB | 900x900 | OW68QBE-isometric-with-grille.jpg |
