The BE812 in-wall reference loudspeaker features high-output driver components, set into a solid aluminum baffle, coupled with James' quad tweeter array, incorporating four 1" (25mm) beryllium dome tweeters in a 22.5° offset array for wide dispersion, high-power handling and low distortion promises to deliver audiophile-quality where it counts. Combined with four high output 8" (203mm) aluminum cone woofers, (4) 6.5" (165mm) neodymium mid-drivers, the 812BE has an impressive 102dB sensitivity with bass down to below 40Hz. A multi-element network blends the highs and lows into a smooth and ultra-wide response. The sealed cabinet design features all aircraft aluminum construction for strength, sonic performance, and suitability for outdoor/marine applications when ordering the BE812-M. Designed for easy installation into 2x4 stud walls, 16" on center.

Product Documents

• CAD drawings

  • BE812-PB CAD (dwg)
  • BE812-PB CAD (pdf)
  • BE812 CAD Drawing (PDF)
  • BE812 CAD Drawing (DWG)

• Datasheets/Cutsheets

  • BE812 Datasheet

• Manuals

  • Paintable Grille Instructions

Related Documents

• Brochures

  • Full Line Brochure
  • Interior Product Brochure

• Case Studies

  • Case Study - Southwest Florida Cinema with Mavericks System (CS1007)

• Installation Guides and Info

  • BE Series Installation Guide

• Software

  • EQ Presets

Click photo for download image options

BE812 - Available downloads

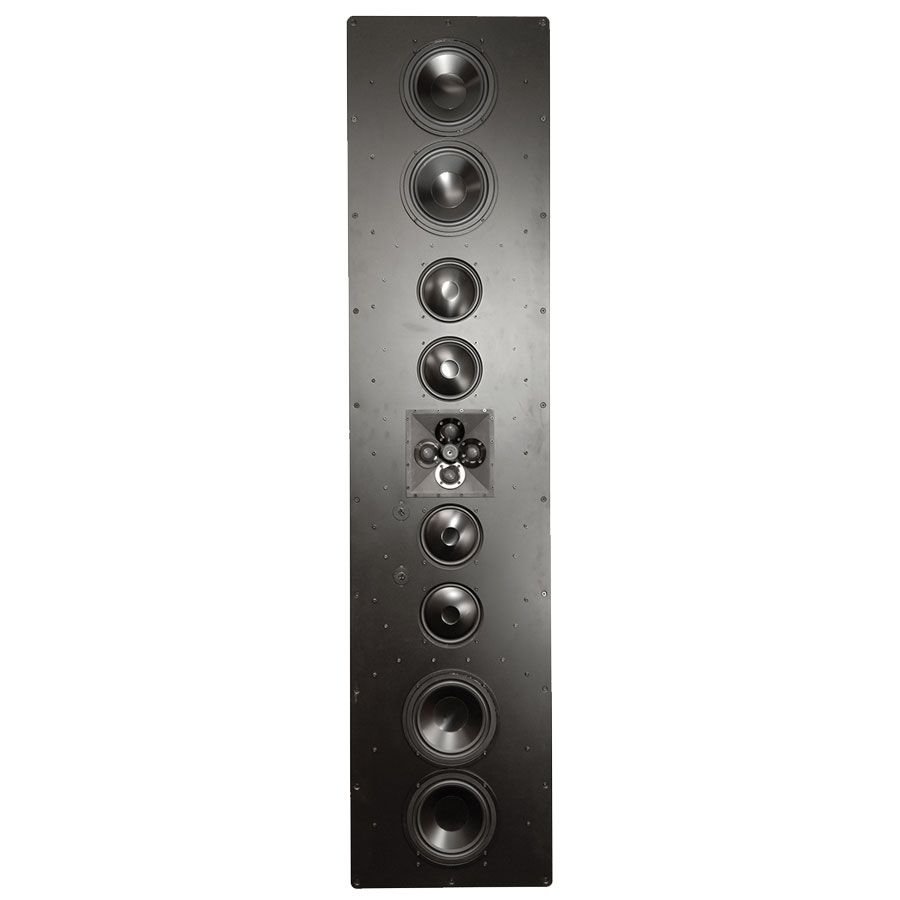

Title: 812BE front

Size	Resolution	(Right-click: Save link as...)
41.43 KB	900x900	812BE_Web.jpg

BE812 - Available downloads

Title: Terminals

Size	Resolution	(Right-click: Save link as...)
75.86 KB	900x900	2-Ch_Terminals.jpg

BE812 - Available downloads

Title: Optional cloth and perf grilles are available

Size	Resolution	(Right-click: Save link as...)
128.65 KB	900x900	BE_grilles_web.jpg
