The QX-SPL5-LR speaker raises the bar of home entertainment systems, setting new levels in sound output and wide frequency response. The stereo format of this bar features two individual systems to provide both left and right channels for full stereo sound in a single enclosure. Perfect for any home entertainment system, this versatile soundbar can be custom built to match each individual TV, providing seamless integration and elegant design as well as high quality audio. Equipped with high output, low-profile woofers and the signature ultra-wide dispersion QX style quad aluminum tweeter array, this low-visibility soundbar packs a powerful punch in a small package. Capable of reaching frequencies across a broad range down to below 65Hz, the QX-SPL5-LR offers full range response with an impressive 89dB sensitivity. The in-wall cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a matching borderless aluminum perforated grille which sits only 3/16” (5mm) off the wall or completely flush with the addition of a pre-construction board, this speaker is both study and reliable as well as elegantly integrated into each system, providing a subdued visual effect, designed to be as unobtrusive as possible. Paintable grille available by request only. Matching in-wall surrounds are available as well, model numbers QX520 and QX530.

For outdoor/ marine applications, order the QX-SPL5-LR-M.

Product Documents

• CAD drawings

  • QX-SPL5-LR CAD Drawing (PDF)
  • QX-SPL5-LR CAD Drawing (DWG)

• Datasheets/Cutsheets

  • QX-SPL5-LR Datasheet

• Manuals

  • Paintable Grille Instructions

Related Documents

• Brochures

  • Full Line Brochure

• Installation Guides and Info

  • PBF Installation Guide
  • QX In-Wall SoundBar – Retrofit Installation
  • PB Installation Guide
  • QX Series Installation

• Software

  • EQ Presets

Click photo for download image options

QX-SPL5-LR - Available downloads

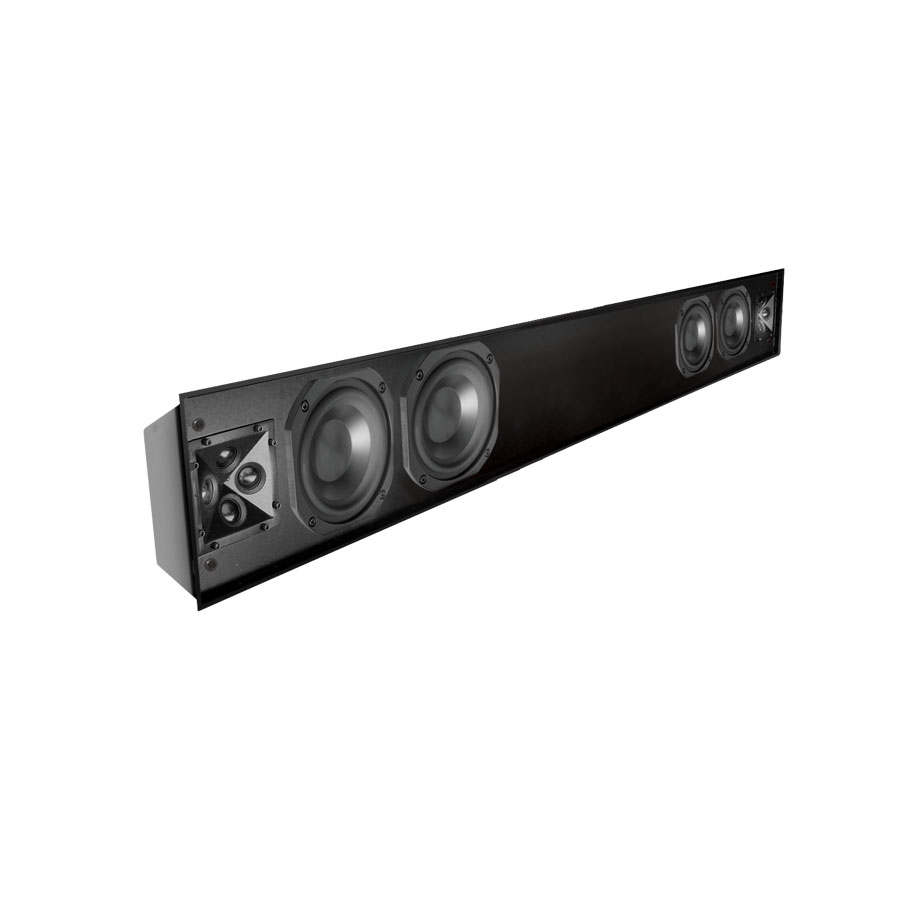

Title: QX5LR Photo

Size	Resolution	(Right-click: Save link as...)
32.53 KB	900x900	QX5LR_Web.jpg

QX-SPL5-LR - Available downloads

Title: QX Series SoundBar

Size	Resolution	(Right-click: Save link as...)
61.50 KB	791x445	soundbar_QX.jpg

QX-SPL5-LR - Available downloads

Title: QX Series SoundBar

Size	Resolution	(Right-click: Save link as...)
52.54 KB	618x431	Soundbar_QX2.jpg

QX-SPL5-LR - Available downloads

Title: Digital Interiors - Slim TV - Proud SoundBar

Size	Resolution	(Right-click: Save link as...)
51.68 KB	1600x900	Digital-Interiors-Glass-TV-1.jpg
4.79 MB	5312x2988	Digital-Interiors-Glass-TV-1_HR.jpg

QX-SPL5-LR - Available downloads

Title: Fuzion 3 - Flush Mount SoundBar - Front

Size	Resolution	(Right-click: Save link as...)
745.45 KB	2016x1512	Fuzion_3_-_Flush_SoundBar_Front.jpg
