QX630

6.5", 2-Way, Full-Range, In-wall Loudspeaker

Technology header click
Tags:

The QX630 in-wall loudspeaker features a sleek modern appearance with a borderless aluminum grille that protrudes less than 3/16” (5 mm) from the wall. James all new quad tweeter array, incorporating four 0.75" (19mm) aluminum dome tweeters in a 22.5° offset array for wide dispersion, high power handling and low distortion promises to deliver audiophile-quality where it counts. Combined with two 6.5" (165mm) high output aluminum cone woofers, the QX630 has an impressive 94dB sensitivity with bass down to below 65Hz. A multi-element network blends the highs and lows into a smooth and wide response. The sealed cabinet design features all aircraft aluminum construction for strength, sonic performance and suitability for outdoor/marine applications. A stainless steel grille provides protection to the components yet has a subdued visual effect, designed to be as unobtrusive as possible. Paintable grille available by request only. For marine/outdoor applications, order the QX630-M.

Specifications
Frequency Response

65Hz-24kHz +/-3dB

Nominal Impedance

4 ohms

Sensitivity

94dB 2.83V/1m

Crossover

2-Way

Recommended Power Range

50 - 200W

Woofer

(2) 6.5" (165mm) Aluminum

Tweeter

(4) 0.75" (19mm) Aluminum

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille (Paintable By Request Only)

Cutout

8.875" x 21.500"

Required Mounting Depth

3.875 in (98.42 mm)

Width

9.61 in (244.09 mm)

Depth

4.125 in (104.77 mm)

Height

22.2 in (563.88 mm)

Grille Height

22.2 in (563.88 mm)

Grille Width

9.61 in (244.09 mm)

Click photo for download image options

Qx630 web front

QX630 - Available downloads

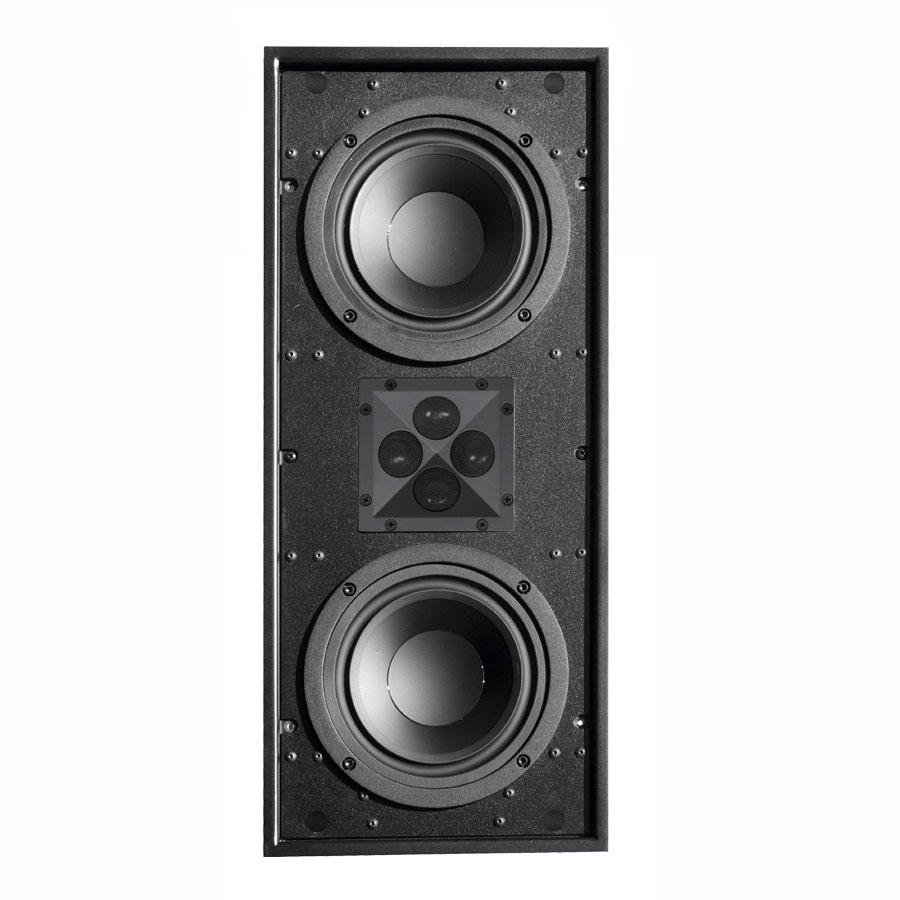

Title: QX630 front
