SPL6QT-C
6.5" Quadratech Soundbar, L, R, or Center Channel, 4" Depth
Tags:
The SPL6QT-C soundbar delivers impressive output and wide frequency response. James has taken the new Quadratech tweeter and Cymatic Diffuser from the VXQ Series and applied it to the SPL Series for exceptional detail and dispersion. When combined with James’ high output 6.5” (165mm) woofers, the SPL6QT-C has a remarkable 91dB sensitivity with bass down below 60Hz, delivering high efficiency, low distortion, and crisp clear audiophile sound. Designed as a center channel, the SPL6TQ-C is perfect for any single channel application, including right, left, or center channels. The cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a custom fit and colored aluminum perforated grille, this Soundbar mounts directly to any TV using our custom PL brackets or by using our universal bracket (BRK.SPL6.UN). James custom fits each bar to fit your TV perfectly to seamlessly integrate this speaker into any entertainment system, delivering a subdued visual effect, designed to be as unobtrusive as possible. Also available for wall mounting or configurable for other custom applications, this Soundbar combines high quality audio with elegant design for the perfect home entertainment solution. For wall mounting, optional Z-brackets or U-brackets can be purchased separately. Blind through holes are incorporated into each bar for wall mounting.
For outdoor/marine applications, order the SPL6QT-C-M.
60Hz-24kHz +/-3dB
4 ohms
91dB 2.83V/1m
50 - 200W
(2) 6.5" (165mm) Low Profile
Quadratech 0.75” (19mm) four titanium dome Tweeter, Ferrofluid-cooled, acoustic back chamber
Aircraft Marine Grade Aluminum; NOTE: SPL-QT models feature panels on the front baffle that provide access during product manufacturing for improved build consistency. Not field-serviceable.
Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver
Custom / (Absolute Minimum Width: 19.5")
4 in (101.60 mm)
8.125 in (206.38 mm)
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
-
Installation Guides and Info
-
Manuals
Related Documents
-
Brochures
-
Software
Click photo for download image options
SPL6QT-C - Available downloads

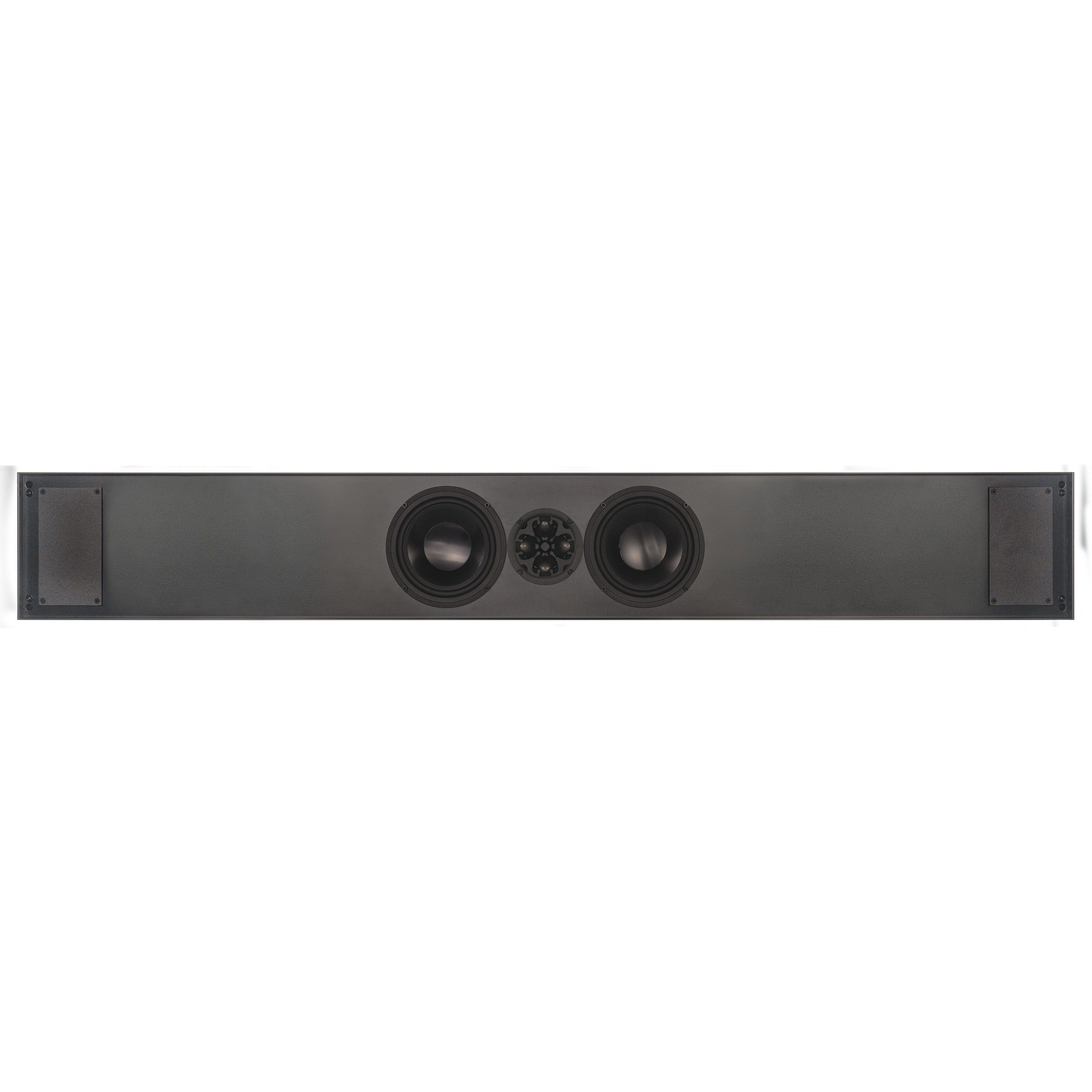

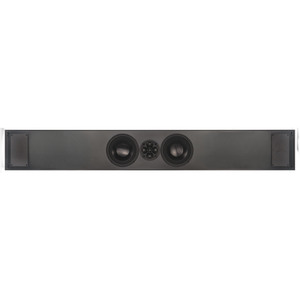

Title: SPL6QT-C Front
