SPL6QT-CS
6.5" Quadratech Soundbar, Centergy Pair, 4" Depth
Tags:

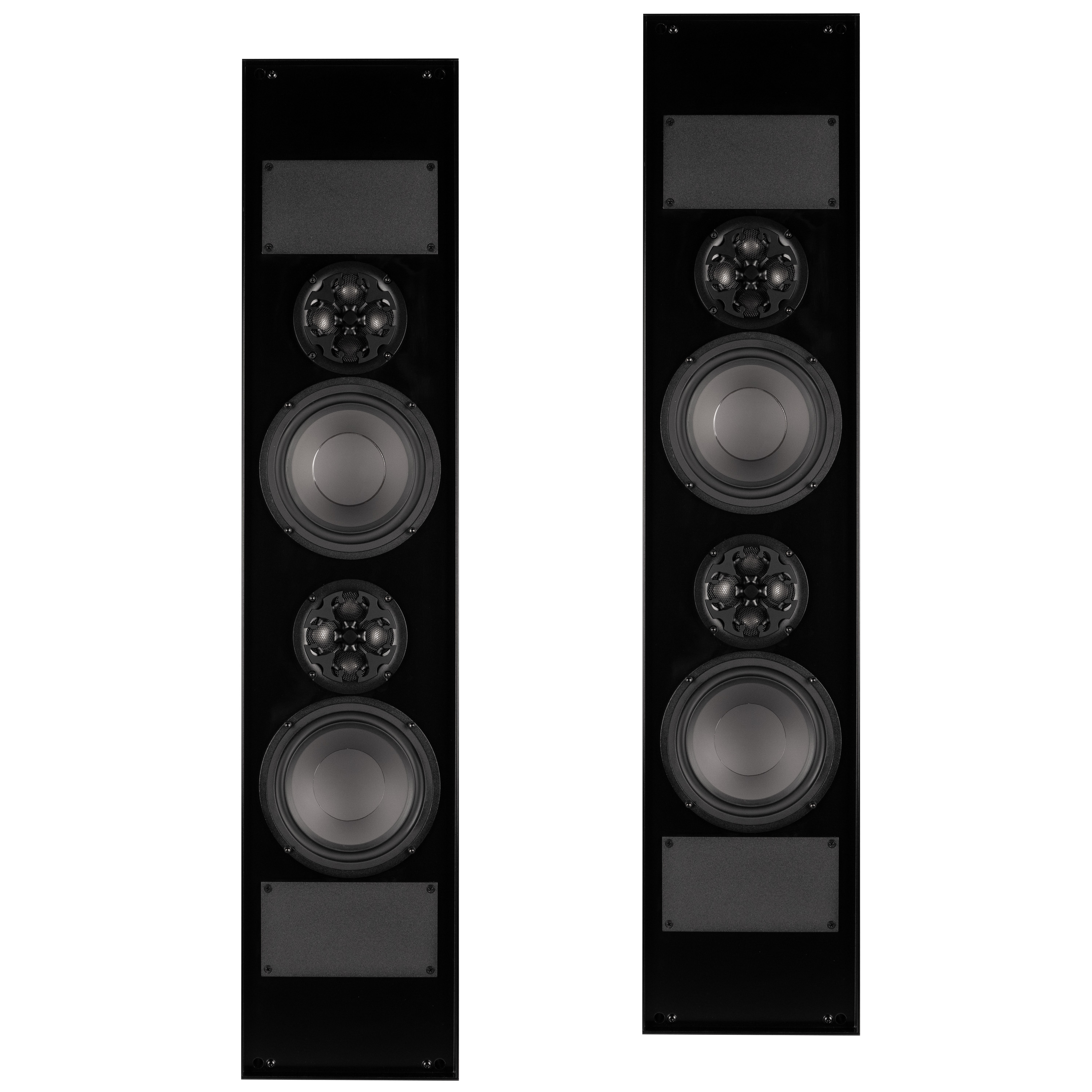

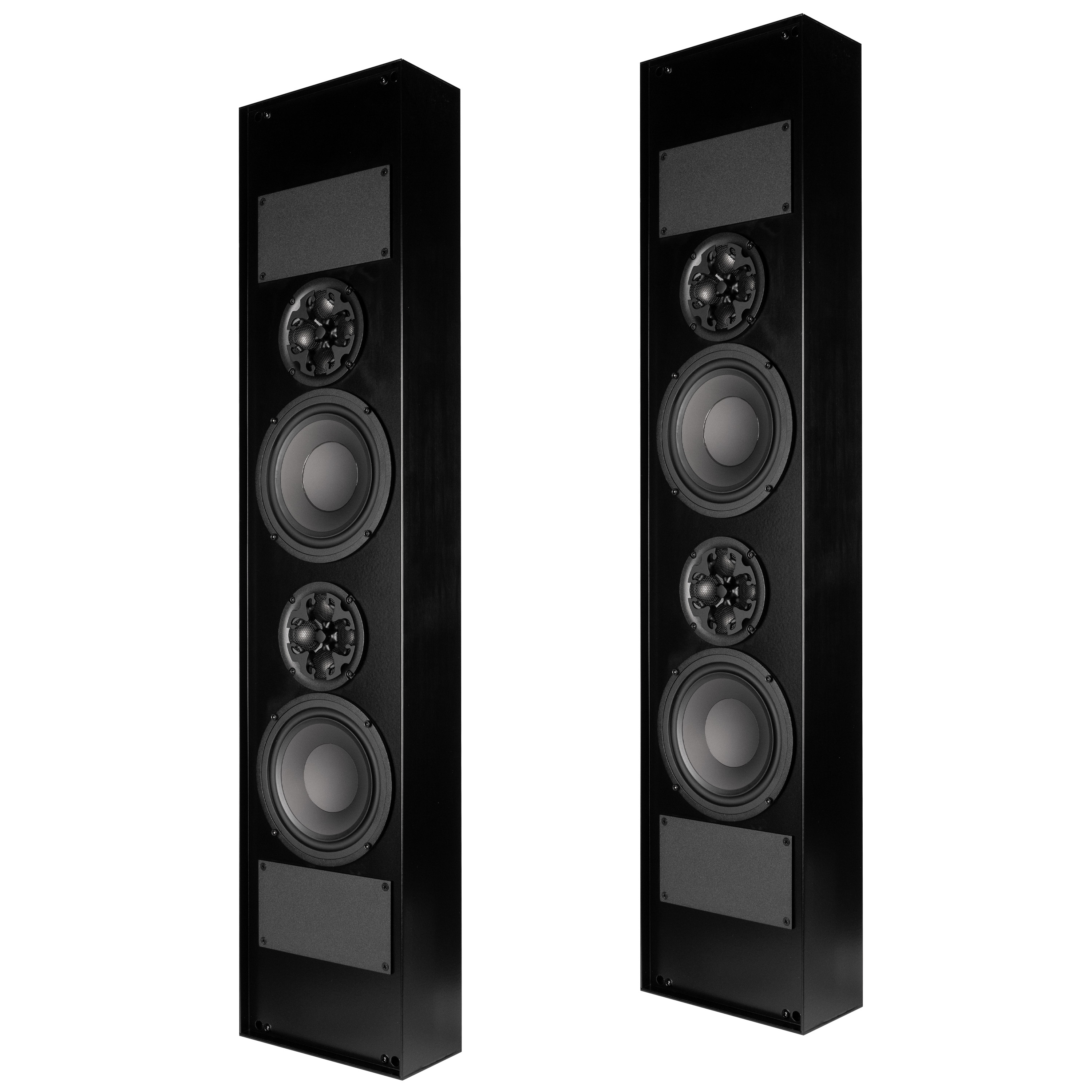

The SPL6QT-CS Centergy soundbars deliver impressive output and wide frequency response. James has taken the new Quadratech tweeter and Cymatic Diffuser from the VXQ Series and applied it to the SPL Series for exceptional detail and dispersion. When combined with James’ high output 6.5” (165mm) woofers, the SPL6QT-CS has a remarkable 91dB sensitivity with bass down below 60Hz, delivering high efficiency, low distortion, and crisp clear audiophile sound. Designed to use centergy technology, this soundbar pair combines a right and left channel in either bar with a center channel split between the two, perfect for applications where 3 channels are needed, but the available space is only to the sides of the TV. The cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a custom fit and colored aluminum perforated grille, this soundbar mounts directly to any TV using our custom PL brackets. James custom fits each bar to fit your TV perfectly to seamlessly integrate this speaker into any entertainment system, delivering a subdued visual effect, designed to be as unobtrusive as possible. Also available for wall mounting or configurable for other custom applications, this soundbar combines high quality audio with elegant design for the perfect home entertainment solution. Custom TV mounting brackets for CS pair Soundbars must be purchased separately (PL-B-CUSTOM). Blind through holes are incorporated into each bar for wall mounting.
For outdoor/marine applications, order the SPL6QT-CS-M.
60Hz-24kHz +/-3dB
4 ohms
91dB 2.83V/1m
50 - 200W
(2-8) 6.5" (165mm) Low Profile (per pair)
Quadratech 0.75” (19mm) four titanium dome Tweeter, Ferrofluid-cooled, acoustic back chamber
Aircraft Marine Grade Aluminum; NOTE: SPL-QT models feature panels on the front baffle that provide access during product manufacturing for improved build consistency. Not field-serviceable.
Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver
8.125 in (206.38 mm)
4 in (101.60 mm)
Custom / (Absolute Minimum Height: 27.5")
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
-
Installation Guides and Info
-
Manuals
Related Documents
-
Brochures
-
Software
Click photo for download image options
SPL6QT-CS - Available downloads

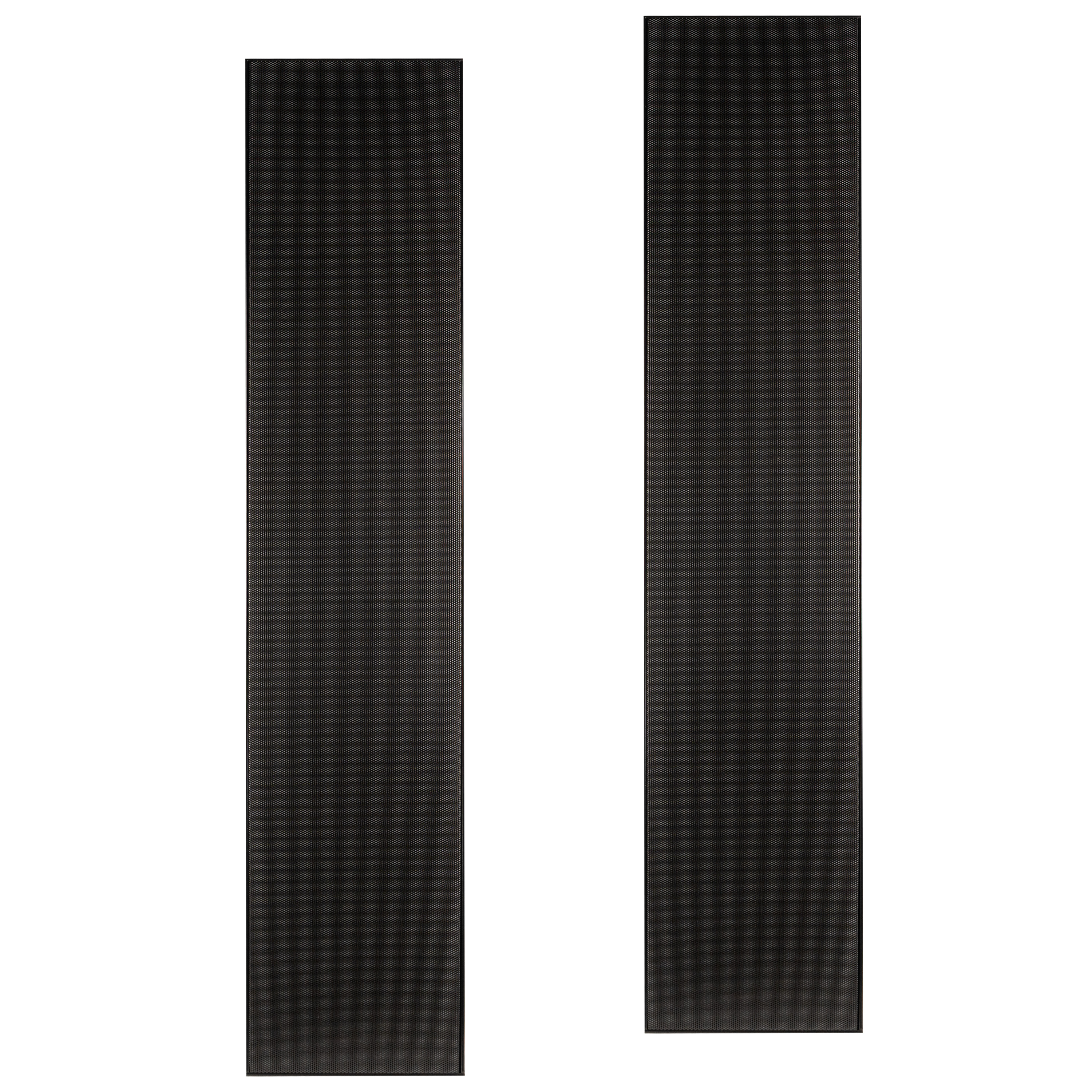

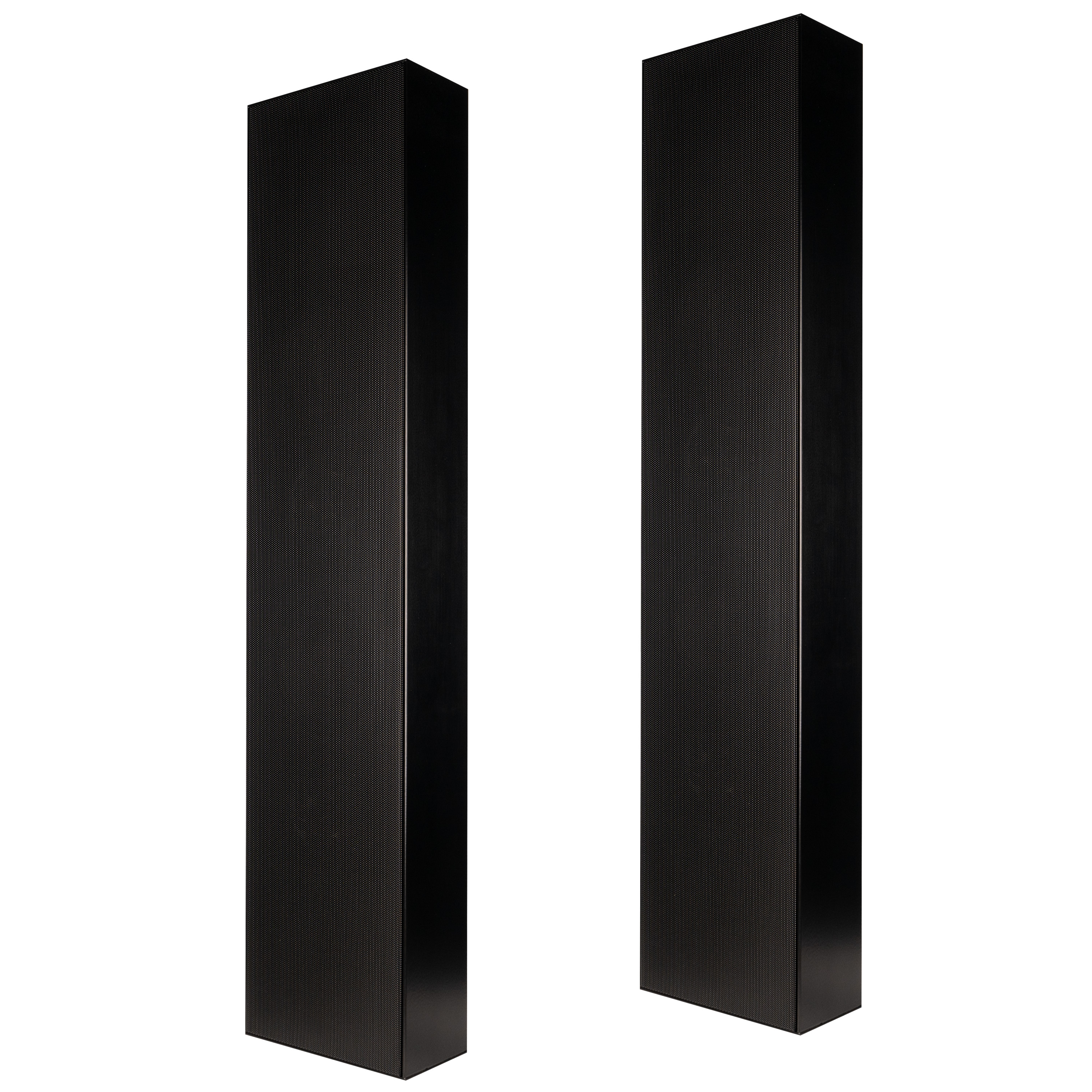

Title: SPL6QT-CS Front
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 603.94 KB | 3000x3000 | SPL6QT_0000s_0005_01_SPL6Q_CS.jpg |
SPL6QT-CS - Available downloads
Title: SPL3 series colors
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 88.41 KB | 900x900 | Colors_Web.jpg |
SPL6QT-CS - Available downloads
Title: SPL6Q-CS rear
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 21.37 KB | 900x900 | SPL6Q-CS-back.jpg |
SPL6QT-CS - Available downloads

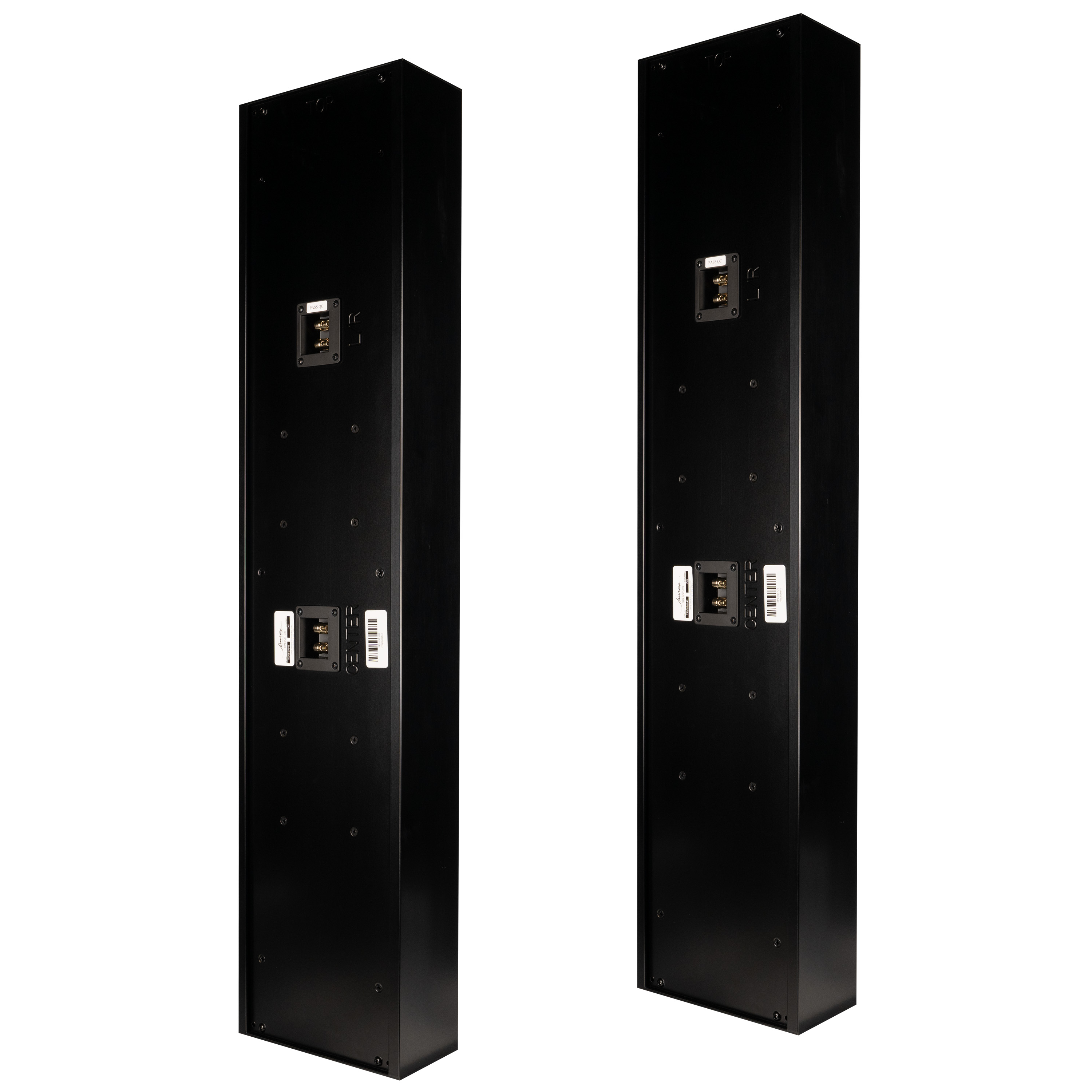

Title: SPL6Q-CS rear iso
